Ford 5600 Tests


Ford 5600 tractor photo
1975 - 1981
Row-Crop tractor
Series map:
5600
6600
69.0hp
75.5hp
Tractor Tests
NTTL 1201: diesel 8-speed 2WD
NTTL 1227: diesel 16-speed 2WD
Nebraska Tractor Test 1201

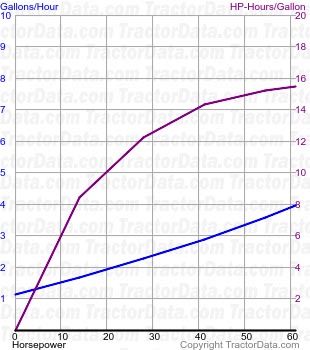

5600 fuel use from test 1201
Nebraska Tractor Test 1201
Diesel 8-speed 2WD
March 15 - 29, 1976
Link: Nebraska Tractor Test 1201 file
PTO performance
Power at rated engine speed60.49 hp
45.1 kW
Fuel use3.9 gal/hour
14.8 l/hour
Power at rated PTO speed56.85 hp
42.4 kW
Fuel use3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power50.09 hp
37.4 kW
Fuel use3.9 gal/hour
14.8 l/hour
Gear 4 used for power test.
Max pull7105 lbs
3222 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1227

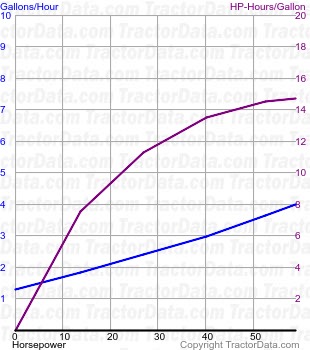

5600 fuel use from test 1227
Nebraska Tractor Test 1227
Diesel 16-speed 2WD
October 5 - 20, 1976
Link: Nebraska Tractor Test 1227 file
PTO performance
Power at rated engine speed58.46 hp
43.6 kW
Fuel use4.0 gal/hour
15.1 l/hour
Power at rated PTO speed56.00 hp
41.8 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power47.86 hp
35.7 kW
Fuel use4.0 gal/hour
15.1 l/hour
Gear 8 used for power test.
Max pull7140 lbs
3238 kg
Gear 4 used for pull test.
