Tractors > Ford > 5000

Ford 5000



Ford 5000 tractor photo
1965 - 1976
Model year
Row-Crop tractor
Series map:
4000
5000
Commander 6000
50.0hp*
69.0hp
72.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerFord
Row-Crop tractor
Built in Highland Park, Michigan, USA
Original price was $5,400 in 1967
Variants
5100general purpose
5200row-crop
Ford 5000 Engines
Ford 3.8L 4-cyl gasoline
Ford 3.8L 4-cyl diesel
Engine details ...
Ford 5000 Transmissions
8-speed
10-speed full power shift
16-speed partial power shift
Transmission details ...
Ford 5000 Power
Engine69 hp
51.5 kW
Drawbar (tested)50.85 hp
37.9 kW
PTO (tested)60.37 hp
45.0 kW
Performance test details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear
GP Steeringpower assist
Row-crop Steeringhydrostatic power
Differential mechanical wet disc brakes
Open operator station.
Photos

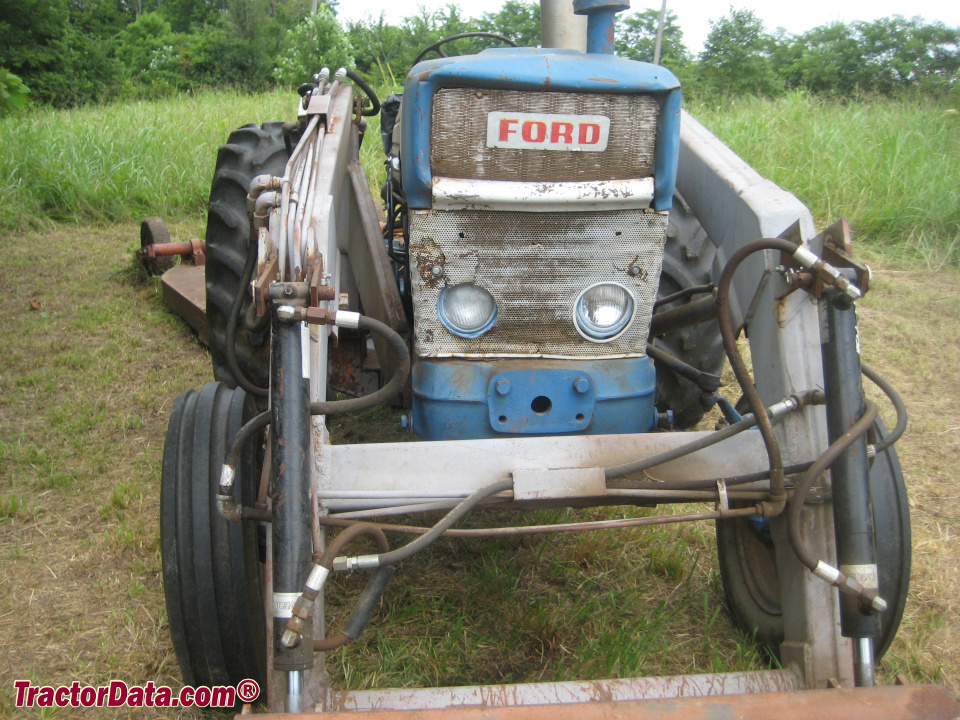

Ford 5000 with Westendorf front-end loader.
Ford 5000 photos...
Capacity
Fuel20 gal
75.7 L
Hydraulic system8.7 gal
32.9 L
Hydraulics
Typeopen center
Capacity8.7 gal
32.9 L
Pressure2500 psi
172.4 bar
Pump flow6 gpm
22.7 lpm
Steering flow4.5 gpm
17.0 lpm
Steering press.1050 psi
72.4 bar
Tractor hitch
Rear TypeII/I
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/1000
Engine RPM540@1900
 1000@2060
Dimensions & Tires
GP Wheelbase87.5 inches
222 cm
Row-crop Wheelbase96 inches
243 cm
Weight5740 to 6250 pounds
Front tire6.00-16
Rear tire12.4-38
Full dimensions and tires ...
Ford 5000 attachments
front-end loader
Attachment details ...

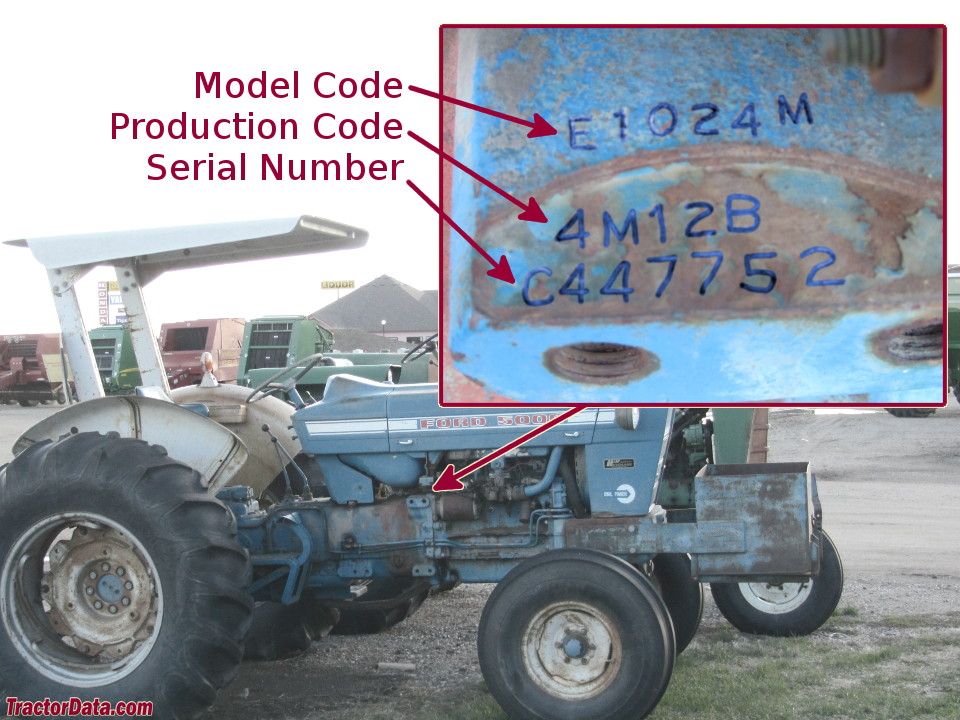

5000 Serial Number Location
Ford 5000 serial number location
Transmission, front upper-right corner, stamped into top of casting. Serial numbers for US-production Ford tractors shown.
5000 Serial Numbers
1965C100000
1966C124200
1967C161300
1968C190200
1969C226000
1970C257600
1971C292100
1972C327200
1973C367300
1974C405200
1975C450700
1976C490300

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemgenerator
Charging amps22
Battery volts12
Gas Battery AH80
Diesel Battery AH128
References
5000 references literature
Tractors For Industrial Use published in 1967, by Ford
New-Size Ford 4000 - 5000 published in 1968
Major 4000 & Super Major 5000 Instruktionsbok published in 1965
5000 Row Crop published in 1967, by Ford
5000 published in 1967, by Ford
New-Size Fords published in 1964
Heavier-Stronger-Tougher Compare New-Size Fords published in 1965
Ford Tractor Operator's Manual 2000 3000 4000 5000 (SE3006) published in 1966
