Ford 3610 Tests


Ford 3610 tractor photo
1982 - 1983
10 Utility Series
Utility tractor
Series map:
2610
3610
4110
40.5hp
47.5hp
54.0hp
Tractor Tests
NTTL 1226: gasoline 8x2 2WD
NTTL 1422: diesel 8x2 2WD
NTTL 1423: diesel 8x4 2WD
Nebraska Tractor Test 1226

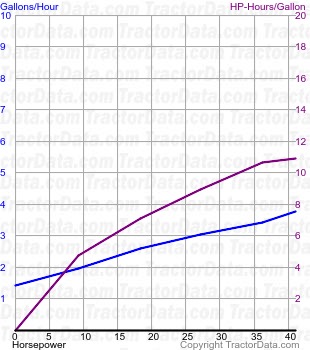

3610 fuel use from test 1226
Nebraska Tractor Test 1226
Gasoline 8x2 2WD
September 23 - October 14, 1976
Link: Nebraska Tractor Test 1226 file
PTO performance
Power at rated engine speed40.62 hp
30.3 kW
Fuel use3.8 gal/hour
14.4 l/hour
Power at rated PTO speed38.29 hp
28.6 kW
Fuel use3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power33.80 hp
25.2 kW
Fuel use3.7 gal/hour
14.0 l/hour
Gear 4 used for power test.
Max pull5,123 lbs
2323 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1422
Diesel 8x2 2WD
April 23 - May 12, 1982
Link: Nebraska Tractor Test 1422 file
PTO performance
Power at rated engine speed42.26 hp
31.5 kW
Fuel use2.7 gal/hour
10.2 l/hour
Power at rated PTO speed40.17 hp
30.0 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power35.86 hp
26.7 kW
Fuel use2.7 gal/hour
10.2 l/hour
Gear 5 used for power test.
Max pull4,964 lbs
2251 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1423
Diesel 8x4 2WD
March 16 - April 1, 1982
Link: Nebraska Tractor Test 1423 file
PTO performance
Power at rated engine speed42.47 hp
31.7 kW
Fuel use2.7 gal/hour
10.2 l/hour
Power at rated PTO speed40.01 hp
29.8 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power34.24 hp
25.5 kW
Fuel use2.7 gal/hour
10.2 l/hour
Max pull4,917 lbs
2230 kg
Gear 2 used for pull test.
