Ford 2600 Engine


Ford 2600 tractor photo
1975 - 1981
Utility tractor
Series map:
2600
3600
36.5hp
48.0hp
Engine options
Ford 2.6L 3-cyl diesel
Ford 2.6L 3-cyl gasoline
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power (net)34.3 hp
25.6 kW
Power (gross)36.5 hp
27.2 kW
Air cleaneroil bath
Pre-heatingether injection OptOptional
 coolant heater OptOptional
Compression17.3:1
Rated RPM2000
Torque101 lb-ft
137.0 Nm
Torque RPM1400
Firing order1-2-3
Starterelectric
Starter volts12
Oil capacity7 qts
6.6 L
Coolant capacity11 qts
10.4 L

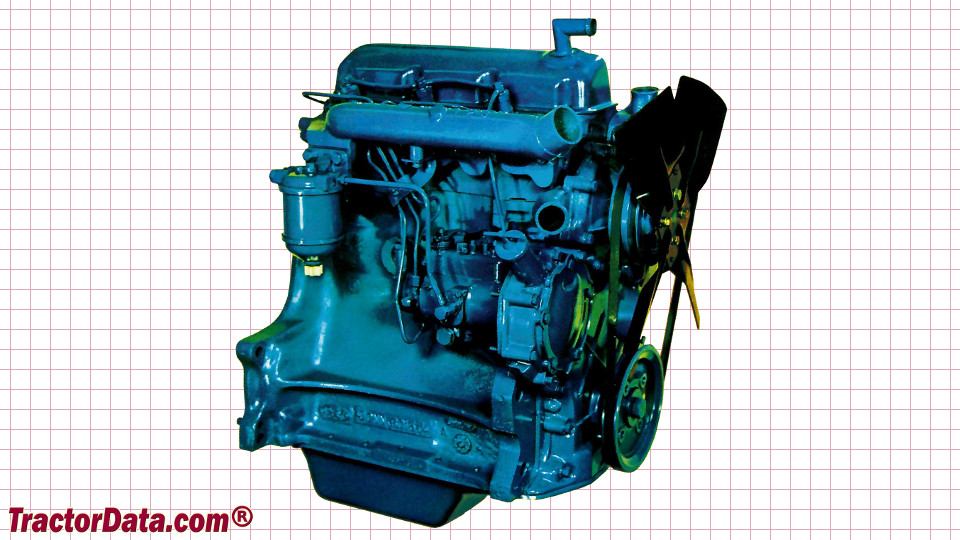

Ford 2600 Engine
Ford 2600 engine image
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power (net)33 hp
24.6 kW
Power (gross)35.5 hp
26.5 kW
Air cleanerdry
Compression7.75:1
Rated RPM2000
Torque100.5 lb-ft
136.3 Nm
Torque RPM1350
Firing order1-2-3
Starterelectric
Starter volts12
Oil capacity7 qts
6.6 L
Coolant capacity11 qts
10.4 L
