Tractors > Ford > 1900

Ford 1900 Tests



Ford 1900 tractor photo
1979 - 1983
Hundred Compact Series
Compact Utility tractor
Shibaura built
Series map:
1700
1900
23.9hp
28.7hp
Nebraska Tractor Test 1326

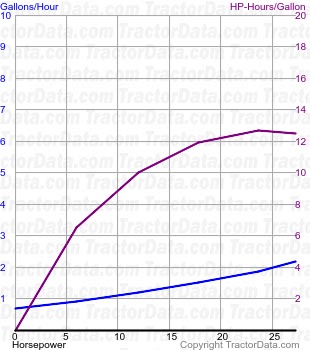

1900 fuel use from test 1326
Nebraska Tractor Test 1326
Diesel 12-speed 2WD
September 24 - October 1, 1979
Link: Nebraska Tractor Test 1326 file
PTO performance
Power at rated engine speed26.88 hp
20.0 kW
Fuel use2.2 gal/hour
8.3 l/hour
Power at rated PTO speed25.68 hp
19.1 kW
Fuel use2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power22.06 hp
16.5 kW
Fuel use2.1 gal/hour
7.9 l/hour
Gear 3-2 used for power test.
Max pull2,964 lbs
1344 kg
Gear 2-3 used for pull test.
