Ford 1900 Engine


Ford 1900 tractor photo
1979 - 1983
Hundred Compact Series
Compact Utility tractor
Shibaura built
Series map:
1700
1900
23.9hp
28.7hp

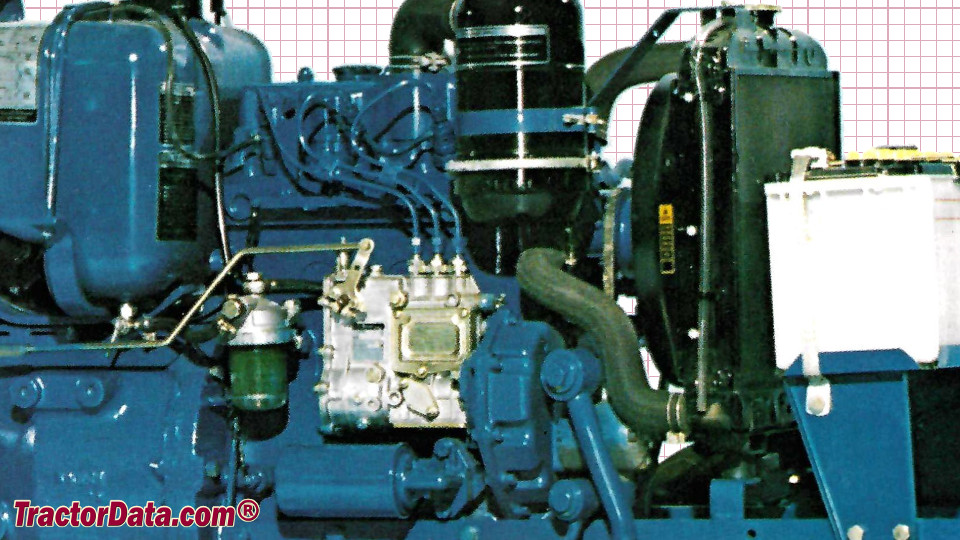

Engine Detail
Shibaura LEM853
diesel
3-cylinder
liquid-cooled
Displacement87.2 ci
1.4 L
Bore/Stroke3.35x3.31 inches
85 x 84 mm
Power28.7 hp
21.4 kW
Power (gross)30 hp
22.4 kW
Air cleaneroil bath
Pre-heatingglow plugs
Compression21:1
Rated RPM2800
Starter volts12
Oil capacity6.7 qts
6.3 L
Coolant capacity7.2 qts
6.8 L
