Ford 1700 Tests


Ford 1700 tractor photo
1979 - 1982
Hundred Compact Series
Compact Utility tractor
Shibaura built
Series map:
1500
1700
1900
19.8hp
23.9hp
28.7hp
Nebraska Tractor Test 1325

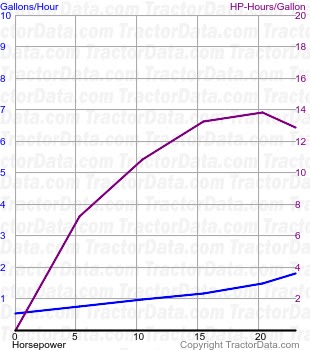

1700 fuel use from test 1325
Nebraska Tractor Test 1325
Diesel 12-speed 2WD
September 24 - 28, 1979
Link: Nebraska Tractor Test 1325 file
PTO performance
Power at rated engine speed23.26 hp
17.3 kW
Fuel use1.8 gal/hour
6.8 l/hour
Power at rated PTO speed23.02 hp
17.2 kW
Fuel use0.0 gal/hour
0.0 l/hour
Drawbar performance
Max power18.82 hp
14.0 kW
Fuel use1.7 gal/hour
6.4 l/hour
Gear 3-2 used for power test.
Max pull2,801 lbs
1270 kg
Gear 2-3 used for pull test.
