Ford 1600 Transmission


Ford 1600 tractor photo
1976 - 1979
Compact Utility tractor
Shibaura built
Series map:
1600
25.6hp*
*Estimated engine power for comparison only.
Transmission
Typegear
Gears9 forward and 3 reverse
Clutch215.9mm dry disc
Oil capacity21.2 qts
20.1 L
Oil type
32oF [0oC] : SAE 80
32o↔86oF [0o↔30oC]   : SAE 90
86oF [30oC] : SAE 140

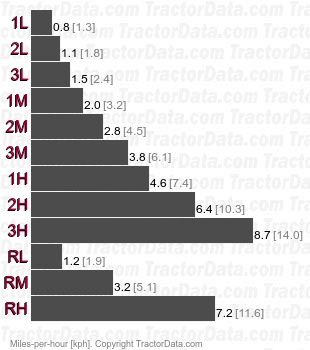

Speeds
1600  gear speeds
Shift Pattern
Ford 1600 transmission controls
