Ford 1600 Tests


Ford 1600 tractor photo
1976 - 1979
Compact Utility tractor
Shibaura built
Series map:
1600
25.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1228

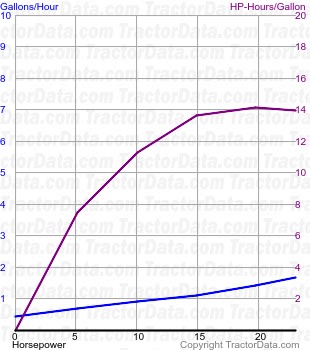

1600 fuel use from test 1228
Nebraska Tractor Test 1228
Diesel 9-speed 2WD
October 15 - 22, 1976
Link: Nebraska Tractor Test 1228 file
PTO performance
Power at rated engine speed23.0 hp
17.2 kW
Fuel use1.7 gal/hour
6.4 l/hour
Power at rated PTO speed19.78 hp
14.7 kW
Fuel use1.4 gal/hour
5.3 l/hour
Drawbar performance
Max power18.09 hp
13.5 kW
Fuel use1.6 gal/hour
6.1 l/hour
Gear 1H used for power test.
Max pull2,634 lbs
1194 kg
Gear 1M used for pull test.
