Ford 960
| | 1954 - 1957 |
| 900 Series | | Row-Crop tractor |
|
Series map:
960
44.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Ford
|
| Row-Crop tractor |
| Built in Highland Park, Michigan, USA |
| Original price | $2,561 (1957)
|
| Variants |
| 860 | utility chassis
|
| 940 | four-speed
|
| 950 | five-speed
|
| 960 | five-speed, live PTO
|
| Ford 960 Power |
| Belt (claimed) | 40 hp
29.8 kW
|
| Plows | 3 (14-inch)
|
| Drawbar (tested) | 38.40 hp
28.6 kW
|
| Belt (tested) | 46.27 hp
34.5 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power assist optional
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1,250 lbs
567 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|

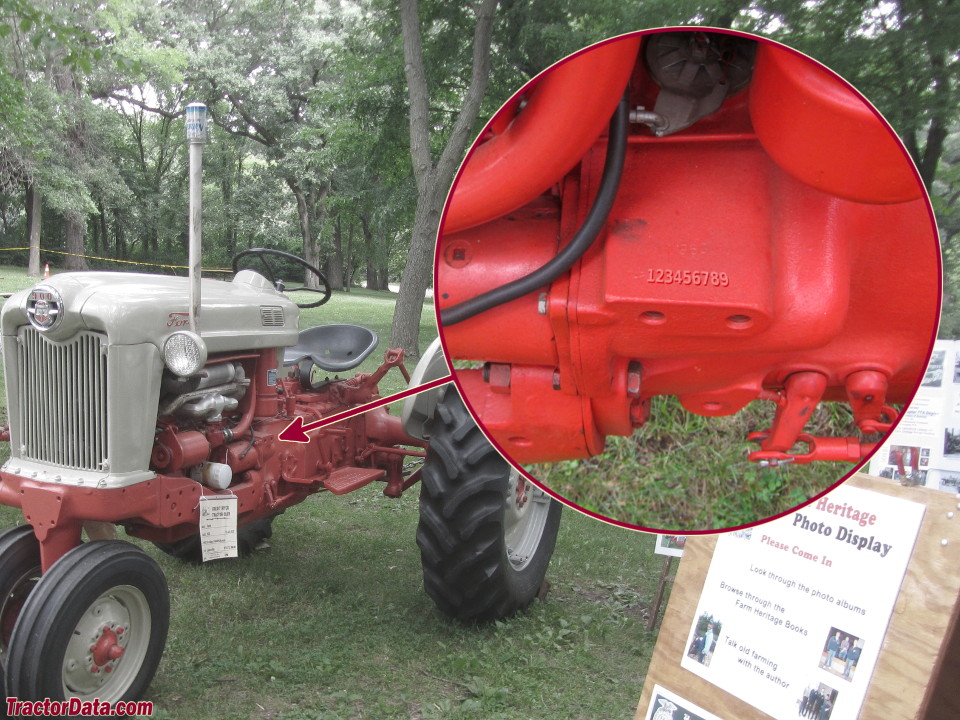

| 960 Serial Number Location |
 |
| Serial number stamped into the starter mount on the left side of the engine. |
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6
|
| References |
 |
| Accessories and special items for your Ford tracotr published in 1958 |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 |
| Ford Tricycle Tractors published in 1956 |
