Ford 960 Tests


Ford 960 tractor photo
1954 - 1957
900 Series
Row-Crop tractor
Series map:
960
44.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 569

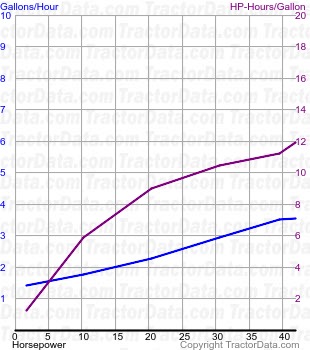

960 fuel use from test 569
Nebraska Tractor Test 569
Gasoline 5-speed 2WD
November 7 - 15, 1955
Link: Nebraska Tractor Test 569 file
Belt power (max)46.27 hp
34.5 kW
Belt fuel use (max)4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power38.40 hp
28.6 kW
Gear 3 used for power test.
Max pull4,669 lbs
2117 kg
Gear 1 used for pull test.
