Ford 860 Tests


Ford 860 tractor photo
1954 - 1957
800 Series
Utility tractor
Series map:
660
860
33.3hp*
44.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 562

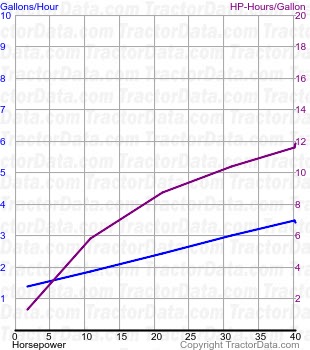

860 fuel use from test 562
Nebraska Tractor Test 562
Gasoline 5-speed 2WD
September 21 - October 6, 1955
Link: Nebraska Tractor Test 562 file
Belt power (max)45.41 hp
33.9 kW
Belt fuel use (max)4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power39.00 hp
29.1 kW
Gear 3 used for power test.
Max pull4,514 lbs
2047 kg
Gear 1 used for pull test.
