Ford 660 Engine
|
|
| Engine options | |
| Ford 2.2L 4-cyl gasoline | |
| Ford 2.2L 4-cyl LP gas |
| Engine Detail | |
| Ford EAE Red Tiger | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled inline | |
| Displacement | 134 ci 2.2 L |
| Bore/Stroke | 3.44x3.60 inches 87 x 91 mm |
| Emissions | Tier 0 |
| Air cleaner | oil bath |
| Compression | 6.6:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-4-3 |
| Starter volts | 6 |
| Coolant capacity | 15 qts 14.2 L |
| Sparkplug | 14MM |
| Sparkplug gap | 0.025 inches (min) 0.635 mm |
| 0.028 inches (max) 0.711 mm | |

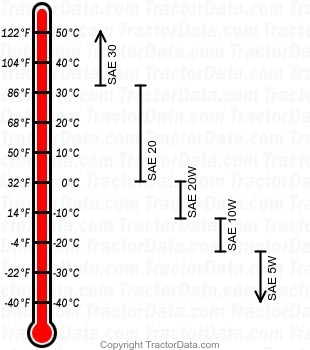

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Oil change | 100 h |
| Engine Detail | |
| Ford EAE Red Tiger | |
| LP gas | |
| 4-cylinder 8-valve | |
| liquid-cooled inline | |
| Displacement | 134 ci 2.2 L |
| Bore/Stroke | 3.44x3.60 inches 87 x 91 mm |
| Air cleaner | oil bath |
| Compression | 6.6:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-4-3 |
| Sparkplug | 14MM |
| Sparkplug gap | 0.028 inches (min) 0.711 mm |
| 0.031 inches (max) 0.787 mm | |
| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Oil change | 100 h |
