| | 1977 - 1982 |
| FW Series | | Four-wheel Drive (4WD) tractor | | Steiger built |
|
Series map:
FW-40
FW-60
295.0hp
335.0hp
| Transmission options |
| 10-speed |
| 20-speed |
| Transmission |
| Transmission | Spicer 1010
|
| Gears | 10 forward and 2 reverse
|
| Clutch | hydraulic 393mm cerametallic dry discs
|
| Oil capacity | 37 qts
35.0 L
|

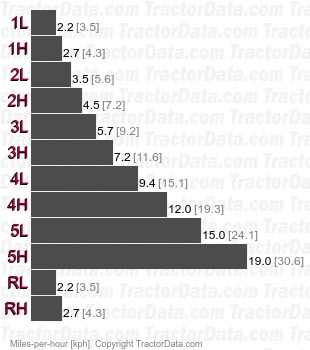

| Five gears (1-5) plus reverse (R) in two ranges (low/high). |
| Speeds |
|
| Transmission |
| Gears | 20 forward and 4 reverse
|
| Clutch | hydraulic dry disc
|

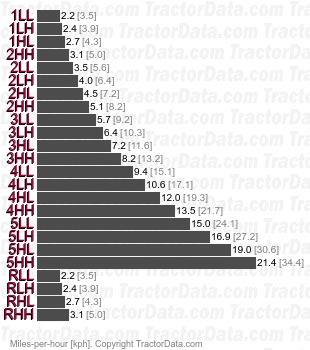

| Optional dual-speed transfer case provides 20 forward gears on the base 10-speed transmission. |
| Speeds |
|
