Ford FW-40 Transmission


Ford FW-40 tractor photo
1977 - 1979
FW Series
Four-wheel Drive (4WD) tractor
Steiger built
Series map:
FW-30
FW-40
FW-60
265.0hp
295.0hp
335.0hp
Transmission options
10-speed
20-speed
Transmission
TransmissionSpicer 1010
Gears10 forward and 2 reverse
Clutchhydraulic 355mm cerametallic dry discs
Oil capacity37 qts
35.0 L
Five gears (1-5) plus reverse (R) in two ranges (low/high).

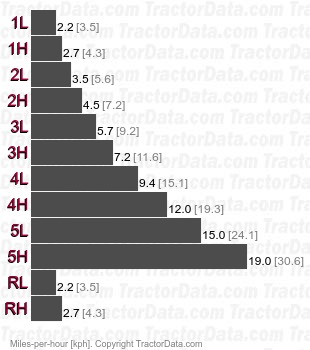

Speeds
FW-40 1010  speeds
Transmission
Gears20 forward and 4 reverse
Clutchhydraulic dry disc
Optional dual-speed transfer case provides 20 forward gears on the base 10-speed transmission.

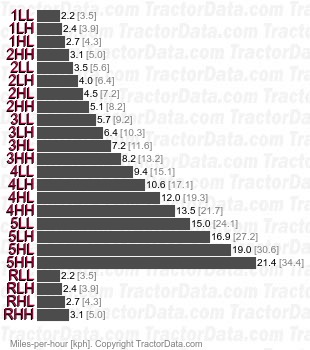

Speeds
FW-40   speeds
