Allis Chalmers 8010



Allis Chalmers 8010 tractor photo
1982 - 1985
8000 Series
Row-Crop tractor
Series map:
8010
8030
119.3hp*
148.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerAllis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built1,832
Original price$46,176
Variants
8010row-crop
8010HChigh-crop
Allis Chalmers 8010 Engine
Allis Chalmers 4.9L 6-cyl diesel
Engine details ...
Allis Chalmers 8010 Transmissions
16-speed partial power shift
20-speed partial power shift
12-speed Allis-Chalmers
Transmission details ...
Allis Chalmers 8010 Power
Drawbar (tested)91.46 hp
68.2 kW
PTO (tested)107.38 hp
80.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Steeringhydrostatic power
Differential hydraulic wet discs brakes
Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.
Photos
Allis-Chalmers 8010 row-crop tractor.
Allis Chalmers 8010 photos...
Capacity
Fuel60 gal
227.1 L
 25 gal (optional tank)
94.6 L
Rear diff.66.8 qts
63.2 L
Hydraulics
Typeload-sensitive
Valves2 or 3
Pump flow22 gpm
83.3 lpm
 13.5 gpm (transmission)
51.1 lpm
Total flow45 gpm
170.3 lpm
Steering flow9.5 gpm
36.0 lpm
Tractor hitch
Rear TypeII
Rear lift (at 24"/610mm)6,680 lbs
3030 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase106 inches
269 cm
4WD Wheelbase96 inches
243 cm
Weight12630 to 13600 pounds
Front tire10.00-16
Rear tire18.4-38
Full dimensions and tires ...

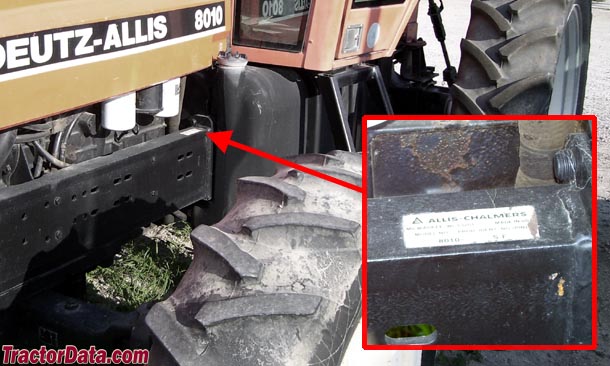

8010 Serial Number Location
Allis Chalmers 8010 serial number location
Main frame, left side
8010 Serial Numbers
19811001
19821020
19831712
19842266
19852609
Final2832

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps100
Battery volts12
References
8010 references literature
8070 - 8050 - 8030 - 8010 published in 1983, by Allis Chalmers
Agri-Data System published in 1982, by Allis Chalmers
