Allis Chalmers 7050 Transmission


Allis Chalmers 7050 tractor photo
1973 - 1974
7000 Series
Row-Crop tractor
Series map:
7030
7050
145.5hp*
173.9hp*
*Estimated engine power for comparison only.
Transmission
TransmissionAllis-Chalmers Power Director XX
Typepartial power shift
Gears20 forward and 4 reverse
The Power Director provides five gears (1-5) in two ranges (slow-fast) with a two-speed power shift (low-high).
Speeds
With 18.4x38 rear tires.

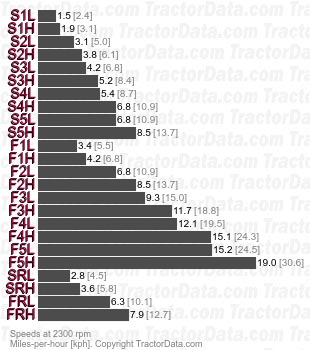

7050 Power Director XX partial power shift speeds
Shift Pattern
Allis Chalmers 7050 transmission controls
