Tractors > Allis Chalmers > 7030

Allis Chalmers 7030 Tests



Allis Chalmers 7030 tractor photo
1973 - 1974
7000 Series
Row-Crop tractor
Series map:
7030
7050
145.5hp*
173.9hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1119

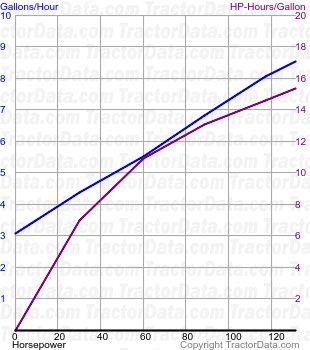

7030 fuel use from test 1119
Nebraska Tractor Test 1119
Diesel 20-speed 2WD
March 13 - 30, 1973
Link: Nebraska Tractor Test 1119 file
PTO performance
Power at rated engine speed130.98 hp
97.7 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated PTO speed131.14 hp
97.8 kW
Fuel use8.5 gal/hour
32.2 l/hour
Drawbar performance
Max power110.29 hp
82.2 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 4SL used for power test.
Max pull12,610 lbs
5719 kg
Gear 1FL used for pull test.
