Allis Chalmers 6070 Tests


Allis Chalmers 6070 tractor photo
1984 - 1985
6000 Series
Row-Crop tractor
Series map:
6060
6070
6080
70.9hp*
78.6hp*
93.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1545

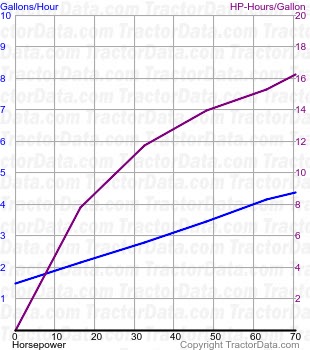

6070 fuel use from test 1545
Nebraska Tractor Test 1545
Diesel 12-speed 2WD
October 19 - 26, 1984
Link: Nebraska Tractor Test 1545 file
PTO performance
Power at rated engine speed70.78 hp
52.8 kW
Fuel use4.4 gal/hour
16.7 l/hour
Power at rated PTO speed71.01 hp
53.0 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power58.35 hp
43.5 kW
Fuel use4.4 gal/hour
16.7 l/hour
Gear 3I used for power test.
Max pull7,997 lbs
3627 kg
Gear 1I used for pull test.
