Allis Chalmers 5030
| | 1979 - 1985 |
| Compact Utility tractor | | Hinomoto built |
|
Series map:
5020
5030
25.0hp
31.0hp
| Production |
| Distributor | Allis Chalmers
|
| Manufacturer | Hinomoto
|
| Compact Utility tractor |
| Built in Osaka, Japan |
| Original price was $9,230 in 1985 |
| Variants |
| E280 | similar Hinomoto model
|
| 9528 | similar Simplicity model
|
| Allis Chalmers 5030 Power |
| Engine | 31 hp
23.1 kW
|
| Drawbar (claimed) | 22.4 hp
16.7 kW
|
| PTO (claimed) | 26 hp
19.4 kW
|
| Plows | 2 *12-inch
|
| Drawbar (tested) | 22.47 hp
16.8 kW
|
| PTO (tested) | 26.42 hp
19.7 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Differential mechanical drum and shoe brakes |
| Two-post ROPS, optional ROPS canopy |
| Capacity |
| Fuel | 7 gal
26.5 L
|
| Hydraulic system | 6.7 gal
25.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.7 gal
25.4 L
|
| Valves | 0 or 1
|
| Pump flow | 5.44 gpm
20.6 lpm
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | live OptOptional
|
| Rear PTO Type | 540
|
| Engine RPM | 540@2320
|

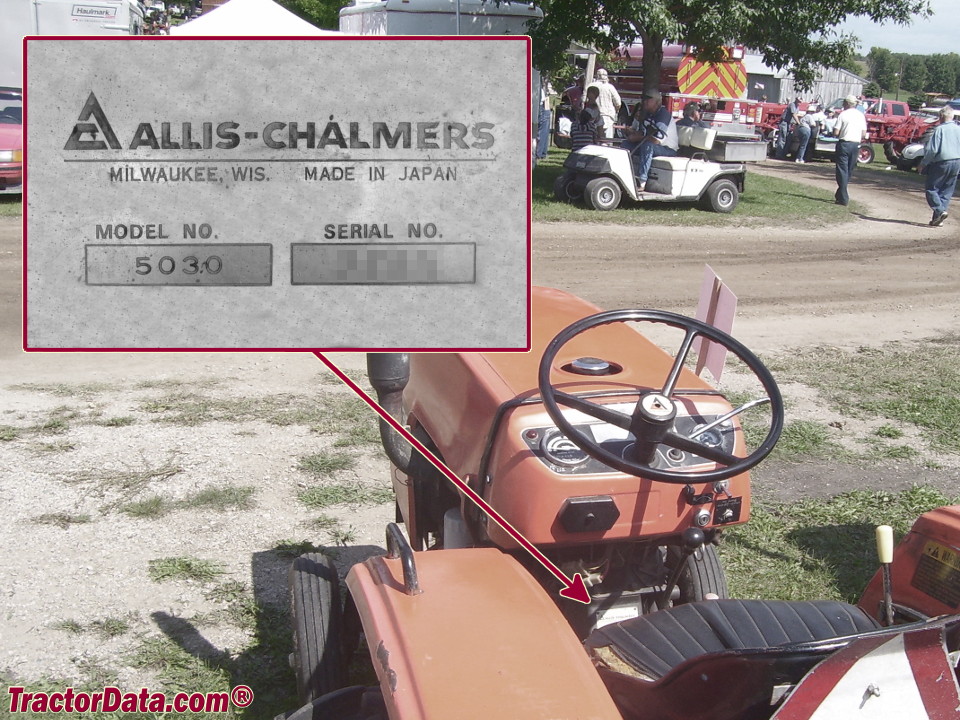

| 5030 Serial Number Location |
 |
| Serial number plate under steering wheel, ahead of the gear shift lever. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 12
|
| Battery volts | 12
|
| Battery AH | 70
|
| References |
 |
| 1983 Lawn and Garden Line published by Allis-Chalmers |
| 1984 Lawn and Garden Line published by Allis-Chalmers |
| 1985 Lawn and Garden Line published by Allis-Chalmers |
| 5000 Series Attachments published in 1984, by Allis Chalmers |
| 5020/5030 The Diesel Force published in 1979, by Allis Chalmers |
| Compact diesels enter new dimensions published in 1983, by Allis Chalmers |
| Operator's Manual 5020-5030 9523-9528 (2097132) published in 1978 |
| 5030 - The powerful answer to multi-job profitability. published in 1978, by Allis Chalmers |
