Allis Chalmers 5020 Transmission


Allis Chalmers 5020 tractor photo
1977 - 1985
Compact Utility tractor
Hinomoto built
Series map:
5015
5020
5030
18.0hp
25.0hp
31.0hp
Transmission options
8-speed unsynchronized gear
12-speed unsynchronized gear
Transmission
Typeunsynchronized gear
Gears8 forward and 2 reverse
Clutch215mm dry disc
Oil capacity22 qts
20.8 L
Oil type
Power Fluid 821
Four gears, plus reverse, with high and low ranges. The eight-speed appears to only have been available during early production.
Speeds
With 9.5-24 rear tires.
5020  unsynchronized gear speeds
Transmission
Typeunsynchronized gear
Gears12 forward and 3 reverse
Clutch215mm dry disc
Oil capacity22 qts
20.8 L
Oil type
Power Fluid 821
Four gears, plus reverse, with high, low, and creeper ranges. The 12-speed is commonly listed as the standard transmission.

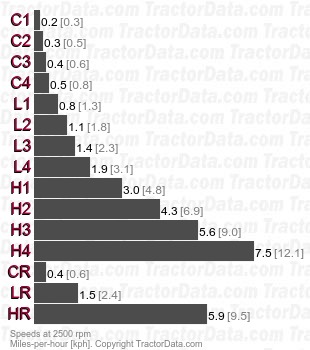

Speeds
With 11.2x24 rear tires.
5020  unsynchronized gear speeds

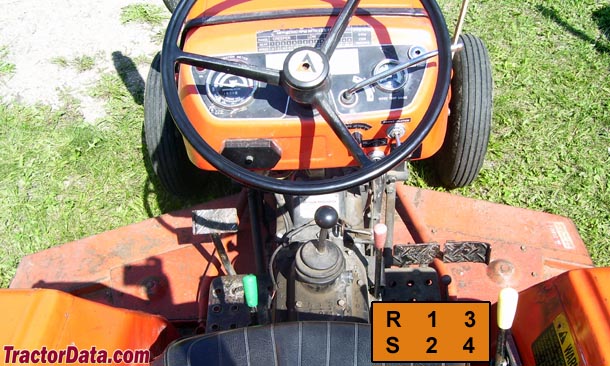

Shift Pattern
Allis Chalmers 5020 transmission controls
