Allis Chalmers 5020 Tests


Allis Chalmers 5020 tractor photo
1977 - 1985
Compact Utility tractor
Hinomoto built
Series map:
5015
5020
5030
18.0hp
25.0hp
31.0hp
Nebraska Tractor Test 1270

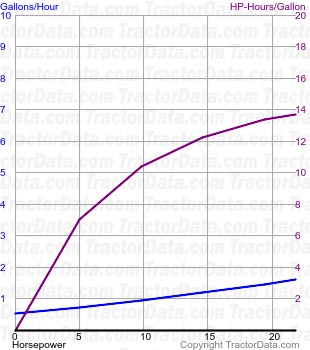

5020 fuel use from test 1270
Nebraska Tractor Test 1270
Diesel 8-speed 2WD
April 6 - 15, 1978
Link: Nebraska Tractor Test 1270 file
PTO performance
Power at rated engine speed21.79 hp
16.2 kW
Fuel use1.6 gal/hour
6.1 l/hour
Power at rated PTO speed20.78 hp
15.5 kW
Fuel use1.5 gal/hour
5.7 l/hour
Drawbar performance
Max power17.37 hp
13.0 kW
Fuel use1.6 gal/hour
6.1 l/hour
Gear 3H used for power test.
Max pull2,346 lbs
1064 kg
Gear 4L used for pull test.
