Allis Chalmers 5020 Engine


Allis Chalmers 5020 tractor photo
1977 - 1985
Compact Utility tractor
Hinomoto built
Series map:
5015
5020
5030
18.0hp
25.0hp
31.0hp
Engine Detail
Toyosha S126
diesel
2-cylinder
liquid-cooled
Displacement77.1 ci
1.3 L
Bore/Stroke3.62x3.74 inches
92 x 95 mm
Power25 hp
18.6 kW
Air cleanersingle paper element
Compression23.0:1
Rated RPM2500
Idle RPM750-2750
Firing order1-2
Starterelectric
Starter volts12
Coolant capacity5.3 qts
5.0 L
Engine Oil

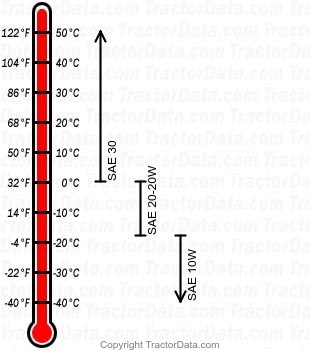

5020 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
