Tractors > Allis Chalmers > 220

Allis Chalmers 220 Tests



Allis Chalmers 220 tractor photo
1970 - 1973
Row-Crop tractor
Series map:
210
220
136.0hp*
151.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1017

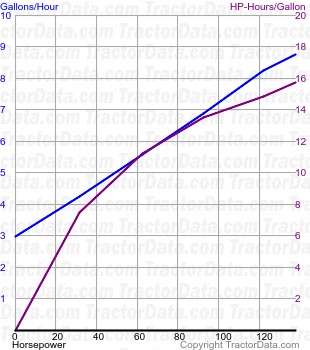

220 fuel use from test 1017
Nebraska Tractor Test 1017
Diesel 8-speed 2WD
June 17 - 24, 1969
Link: Nebraska Tractor Test 1017 file
PTO performance
Power at rated engine speed135.95 hp
101.4 kW
Fuel use8.7 gal/hour
32.9 l/hour
Drawbar performance
Max power117.21 hp
87.4 kW
Fuel use8.7 gal/hour
32.9 l/hour
Gear 4 used for power test.
Max pull15,710 lbs
7126 kg
Gear 2 used for pull test.
