| | 1970 - 1973 |
| Row-Crop tractor |
|
Series map:
200
210
220
104.0hp*
135.6hp*
150.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Allis Chalmers 3500 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 426 ci
7.0 L
|
| Bore/Stroke | 4.25x5.00 inches
108 x 127 mm
|
| Air cleaner | dry
|
| Compression | 16:1
|
| Rated RPM | 2200
|
| Idle RPM | 650-2400
|
| Starter volts | 12
|
| Coolant capacity | 21 qts
19.9 L
|

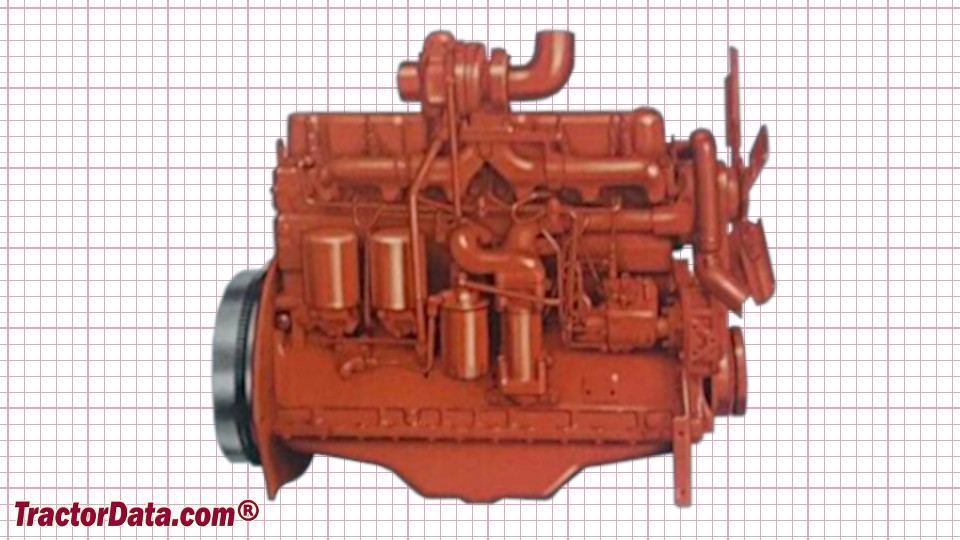

| Allis Chalmers 210 Engine |
 |
