Tractors > Allis Chalmers > 190XT

Allis Chalmers 190XT Tests



Allis Chalmers 190XT tractor photo
1964 - 1971
Row-Crop tractor
Series map:
190
190XT
85.8hp*
104.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 887: diesel 8-speed 2WD
NTTL 927: LP gas 8-speed 2WD
NTTL 929: gasoline 8-speed 2WD
Nebraska Tractor Test 887

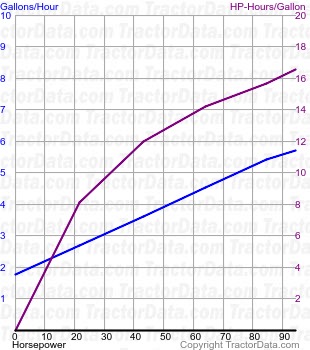

190XT fuel use from test 887
Nebraska Tractor Test 887
Diesel 8-speed 2WD
April 10 - 16, 1965
Link: Nebraska Tractor Test 887 file
PTO performance
Power at rated engine speed93.64 hp
69.8 kW
Fuel use5.7 gal/hour
21.6 l/hour
Power at rated PTO speed89.71 hp
66.9 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power79.12 hp
59.0 kW
Fuel use5.7 gal/hour
21.6 l/hour
Gear 4 used for power test.
Max pull8,917 lbs
4044 kg
Gear 3 used for pull test.
Nebraska Tractor Test 927

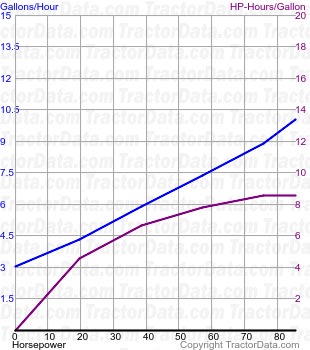

190XT fuel use from test 927
Nebraska Tractor Test 927
LP gas 8-speed 2WD
November 9 - 17, 1965
Link: Nebraska Tractor Test 927 file
PTO performance
Power at rated engine speed85.25 hp
63.6 kW
Fuel use9.9 gal/hour
37.5 l/hour
Power at rated PTO speed76.36 hp
56.9 kW
Fuel use8.7 gal/hour
32.9 l/hour
Drawbar performance
Max power71.95 hp
53.7 kW
Fuel use10.0 gal/hour
37.9 l/hour
Gear 4 used for power test.
Max pull9418 lbs
4272 kg
Gear 2 used for pull test.
Nebraska Tractor Test 929

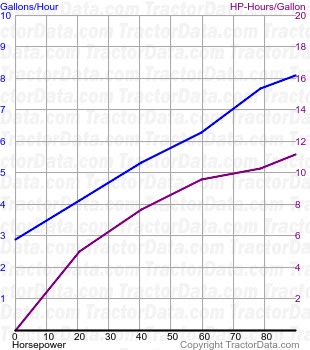

190XT fuel use from test 929
Nebraska Tractor Test 929
Gasoline 8-speed 2WD
November 9 - 16, 1965
Link: Nebraska Tractor Test 929 file
PTO performance
Power at rated engine speed89.53 hp
66.8 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated PTO speed82.30 hp
61.4 kW
Fuel use7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power76.65 hp
57.2 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 4 used for power test.
Max pull9199 lbs
4172 kg
Gear 2 used for pull test.
