Tractors > Allis Chalmers > 170

Allis Chalmers 170 Tests



Allis Chalmers 170 tractor photo
1967 - 1973
Row-Crop tractor
Series map:
170
180
60.0hp*
71.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 965: diesel 8-speed 2WD
NTTL 966: gasoline 8-speed 2WD
Nebraska Tractor Test 965

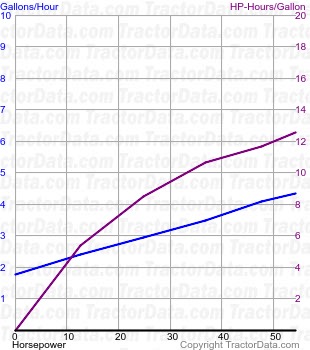

170 fuel use from test 965
Nebraska Tractor Test 965
Diesel 8-speed 2WD
October 13 - 27, 1967
Link: Nebraska Tractor Test 965 file
PTO performance
Power at rated engine speed54.04 hp
40.3 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed50.59 hp
37.7 kW
Fuel use3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power47.39 hp
35.3 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 5 used for power test.
Max pull6881 lbs
3121 kg
Gear 1 used for pull test.
Nebraska Tractor Test 966

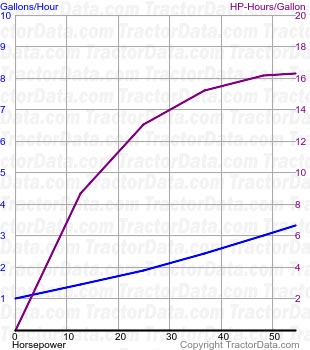

170 fuel use from test 966
Nebraska Tractor Test 966
Gasoline 8-speed 2WD
October 16 - 27, 1967
Link: Nebraska Tractor Test 966 file
PTO performance
Power at rated engine speed54.12 hp
40.4 kW
Fuel use4.3 gal/hour
16.3 l/hour
Power at rated PTO speed51.46 hp
38.4 kW
Fuel use4.0 gal/hour
15.1 l/hour
Drawbar performance
Max power46.93 hp
35.0 kW
Fuel use4.4 gal/hour
16.7 l/hour
Gear 5 used for power test.
Max pull6851 lbs
3107 kg
Gear 1 used for pull test.
