Allis Chalmers WD45 Engine


Allis Chalmers WD45 tractor photo
1953 - 1957
Row-Crop tractor
Series map:
WD45
48.0hp*
*Estimated engine power for comparison only.
Engine options
Allis-Chalmers 3.7L 4-cyl gasoline
Allis-Chalmers 3.7L 4-cyl tractor fuel
Allis-Chalmers 3.7L 4-cyl LP gas
Allis-Chalmers 3.8L 6-cyl diesel
Engine Detail
Allis-Chalmers
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement226 ci
3.7 L
Bore/Stroke4.00x4.50 inches
102 x 114 mm
Compression6.45:1
Rated RPM1400
Torque288 lb-ft
390.5 Nm
Torque RPM867
Firing order1-2-4-3
Starter volts6
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.012 inches*Hot
0.305 mm
Exhaust valve clearance0.012 inches*Hot
0.305 mm
Allis Chalmers WD45 Engine

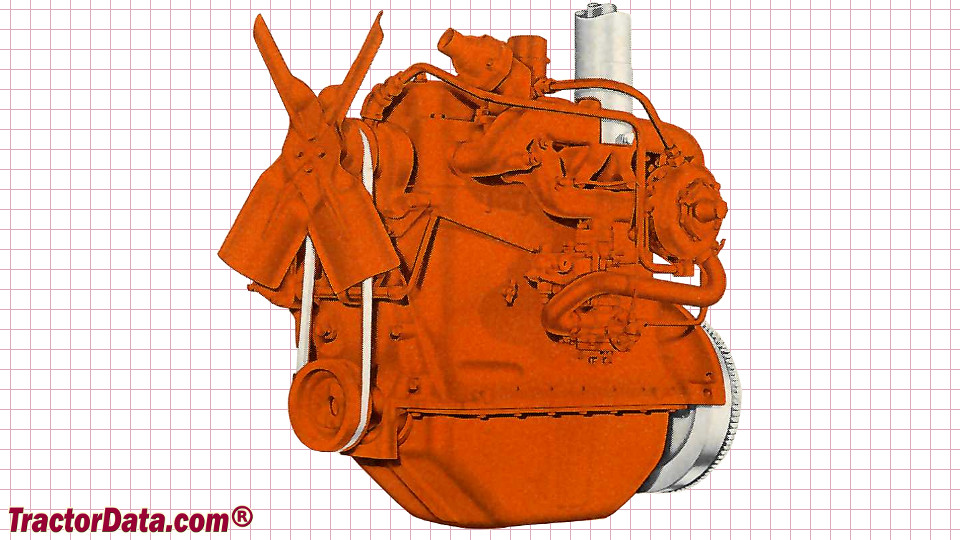

Allis Chalmers WD45 engine image
Engine Detail
Allis-Chalmers
tractor fuel
4-cylinder
liquid-cooled vertical I-head
Displacement226 ci
3.7 L
Bore/Stroke4.00x4.50 inches
102 x 114 mm
Compression4.75:1
Rated RPM1400
Firing order1-2-4-3
Starter volts6
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.012 inches*Hot
0.305 mm
Exhaust valve clearance0.012 inches*Hot
0.305 mm
Engine Detail
Allis-Chalmers
LP gas
4-cylinder
liquid-cooled vertical I-head
Displacement226 ci
3.7 L
Bore/Stroke4.00x4.50 inches
102 x 114 mm
Compression7.2:1
Rated RPM1400
Torque276 lb-ft
374.3 Nm
Torque RPM1250
Firing order1-2-4-3
Starter volts6
Allis Chalmers WD45 Engine

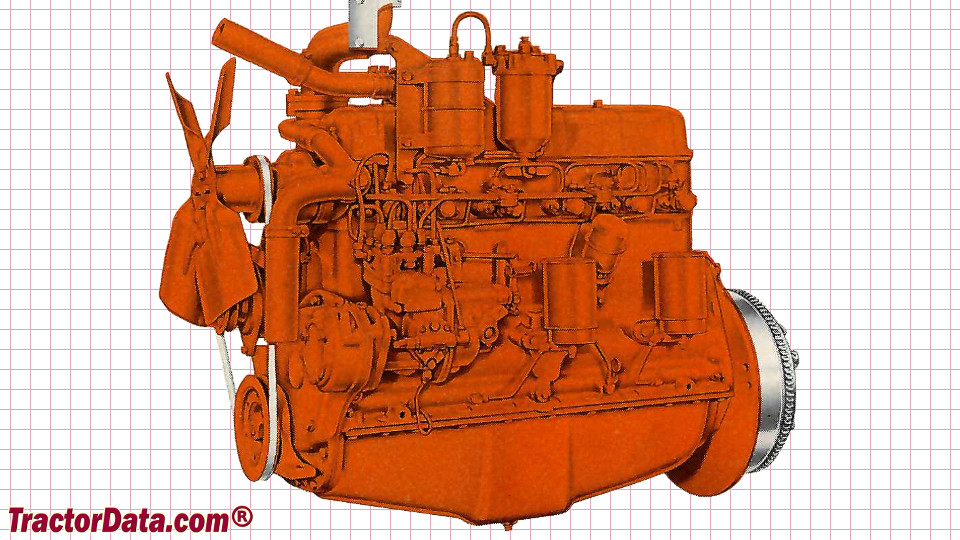

Allis Chalmers WD45 engine image
Engine Detail
Allis-Chalmers
diesel
6-cylinder
liquid-cooled vertical I-head
Available after October of 1954
Displacement230 ci
3.8 L
Bore/Stroke3.4375x4.125 inches
87 x 105 mm
Air cleaneroil bath
Compression15.5:1
Rated RPM1625
Torque259 lb-ft
351.2 Nm
Torque RPM1169
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity17 qts
16.1 L
Intake valve clearance0.010 inches*Hot
0.254 mm
Exhaust valve clearance0.019 inches*Hot
0.483 mm
Engine Oil

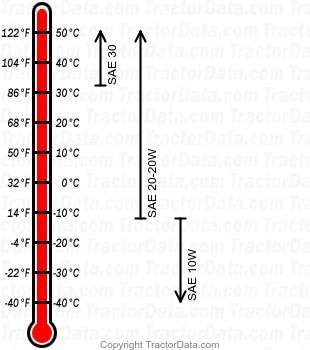

WD45 diesel engine oil chart
Oil capacity7 qts
6.6 L
Allis Chalmers WD45 Engine

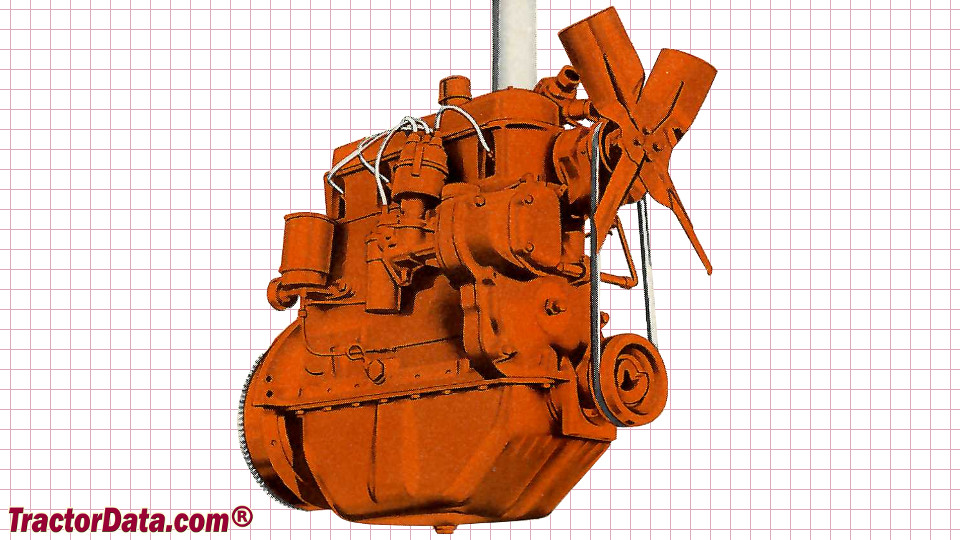

Allis Chalmers WD45 engine image
