Tractors > John Deere > 3640

John Deere 3640



John Deere 3640 tractor photo
1984 - 1987
Utility tractor
Series map:
3140
3640
74.6kw
87.2kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 3640 Engine
John Deere 5.9L 6-cyl diesel
Engine details ...
John Deere 3640 Transmission
16-speed partial power shift
Transmission details ...
John Deere 3640 Power
Engine (gross)117 hp
87.2 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Differential lockrear standard
Power steering
Hydraulic wet disc brakes
Sound-Gard (SG2) cab.
Photos

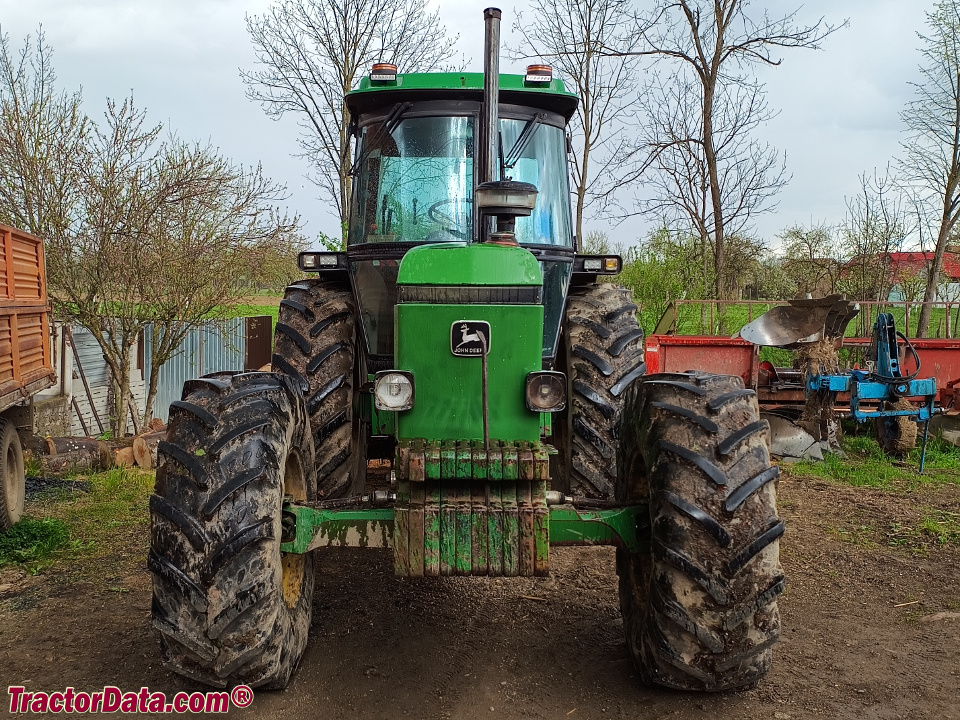

John Deere 3640 tractor.
John Deere 3640 photos...
Capacity
Fuel49.2 gal
186.2 L
Hydraulic system11.1 gal
42.0 L
Hydraulics
Typeclosed center constant pressure
Capacity11.1 gal
42.0 L
Pressure2466 psi
170.0 bar
Pump flow11.9 gpm
45.0 lpm
 22.2 gpmOptOptional
84.0 lpm
Tractor hitch
Rear TypeII/III
Controllower-link draft sensing
Rear lift (at ends)12818 lbs
5814 kg
Rear lift (at 24"/610mm)7930 lbs
3597 kg
Front Hitchoptional
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000
Engine RPM540@2175
 1000@2175
Front PTOoptional
Dimensions & Tires
Wheelbase102 inches
259 cm
Weight10564 to 12929 pounds
Front tire12.4-28
Rear tire16.9-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Batteries2
Battery volts12
Battery AH88
References
3640 references literature
3640 Tractor published in 1984, by John Deere
112-PS-Traktor 3640 published in 1985, by John Deere
