John Deere 8770 Tests


John Deere 8770 tractor photo
1993 - 1996
8070 Series
Four-wheel Drive (4WD) tractor
Series map:
8570
8770
8870
250.0hp
300.0hp
350.0hp
Nebraska Tractor Test 1671

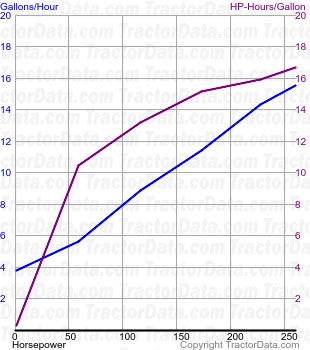

8770 fuel use from test 1671
Nebraska Tractor Test 1671
Diesel PowrSync 4WD
October 19 - November 16, 1993
Link: Nebraska Tractor Test 1671 file
PTO performance
Power at rated engine speed259.31 hp
193.4 kW
Fuel use15.5 gal/hour
58.7 l/hour
Power at rated PTO speed286.31 hp
213.5 kW
Fuel use16.0 gal/hour
60.6 l/hour
Drawbar performance
Max power242.52 hp
180.8 kW
Fuel use15.8 gal/hour
59.8 l/hour
Max pull33,464 lbs
15179 kg
