John Deere 6400 Tests


John Deere 6400 tractor photo
1992 - 1998
6000 Series
Utility tractor
Series map:
6300
6400
83.3hp*
94.4hp*
*Estimated engine power for comparison only.
Tractor Tests
OECD 1520: diesel 12-speed 4WD
OECD 1520: diesel 16-speed 4WD
OCED Tractor Test 1520

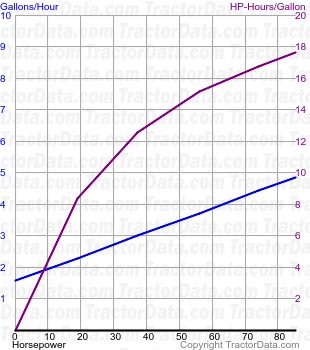

6400 fuel use from test 158
OCED Tractor Test 1520
Diesel 12-speed 4WD
December 1993 - April 1994,
Link: OCED Tractor Test 1520 file
PTO performance
Max power90.1 hp
67.2 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated engine speed86.8 hp
64.7 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed88.5 hp
66.0 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power71.1 hp
53.0 kW
Fuel use4.8 gal/hour
18.2 l/hour
Gear 3B used for power test.
Max pull11895 lbs
5395 kg
Gear 1B used for pull test.
OCED Tractor Test 1520

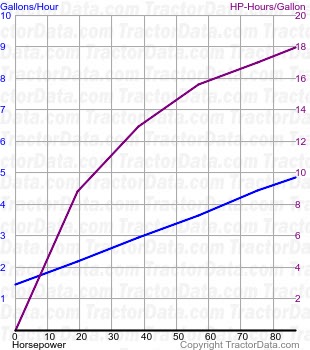

6400 fuel use from test 159
OCED Tractor Test 1520
Diesel 16-speed 4WD
December 1993 - April 1994,
Link: OCED Tractor Test 1520 file
PTO performance
Max power87.7 hp
65.4 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated engine speed85.2 hp
63.5 kW
Fuel use4.9 gal/hour
18.5 l/hour
Power at rated PTO speed86.1 hp
64.2 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power73.2 hp
54.6 kW
Fuel use4.8 gal/hour
18.2 l/hour
Gear 1C used for power test.
Max pull12415 lbs
5631 kg
Gear 4A used for pull test.
