John Deere 6300 Transmission


John Deere 6300 tractor photo
1992 - 1997
6000 Series
Utility tractor
Series map:
6200
6300
6400
89.0hp
83.3hp*
94.4hp*
*Estimated engine power for comparison only.
Transmission options
12-speed fully synchronized
16-speed partial power shift
21-speed partially synchronized
28-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchtriple 9-inch wet disc PermaClutch 2
Standard transmission. Three gears, plus reverse, in four ranges.

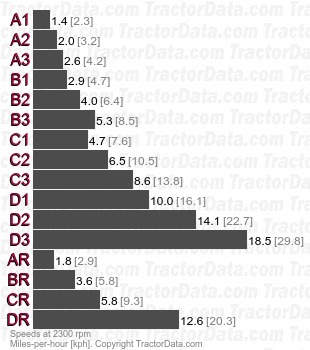

Speeds
With 18.4-30 rear tires.
6300 SyncroPlus fully synchronized speeds
Shift Pattern
John Deere 6300 transmission controls
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchtriple 9-inch wet disc PermaClutch 2
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. Shuttle may be either right or left hand.

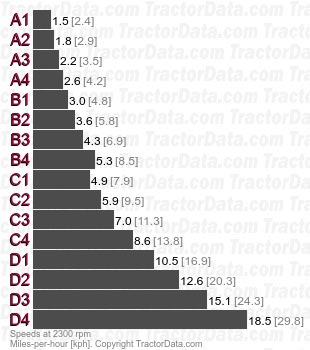

Speeds
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.
6300 PowrQuad partial power shift speeds
Shift Pattern
John Deere 6300 transmission controls
Transmission
TransmissionJohn Deere SyncroPlus Creeper
Typepartially synchronized
Gears21 forward and 7 reverse
Adds a creeper range to the SyncroPlus, engaged by a separate lever.
Transmission
TransmissionJohn Deere PowrQuad Creeper
Typepartial power shift
Gears28 forward and reverse
Creeper range provides an additional 12 speeds to the PowrQuad transmission.
