John Deere 6300 Engine


John Deere 6300 tractor photo
1992 - 1997
6000 Series
Utility tractor
Series map:
6200
6300
6400
89.0hp
83.3hp*
94.4hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere CD4039
turbocharged diesel
4-cylinder
liquid-cooled
Displacement239 ci
3.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Rated RPM2300
Idle RPM1840-2300
Starter volts12
Oil capacity12.8 qts
12.1 L
Coolant capacity14.5 qts (ROPS)
13.7 L
 18.5 qts (cab)
17.5 L
John Deere 6300 Engine

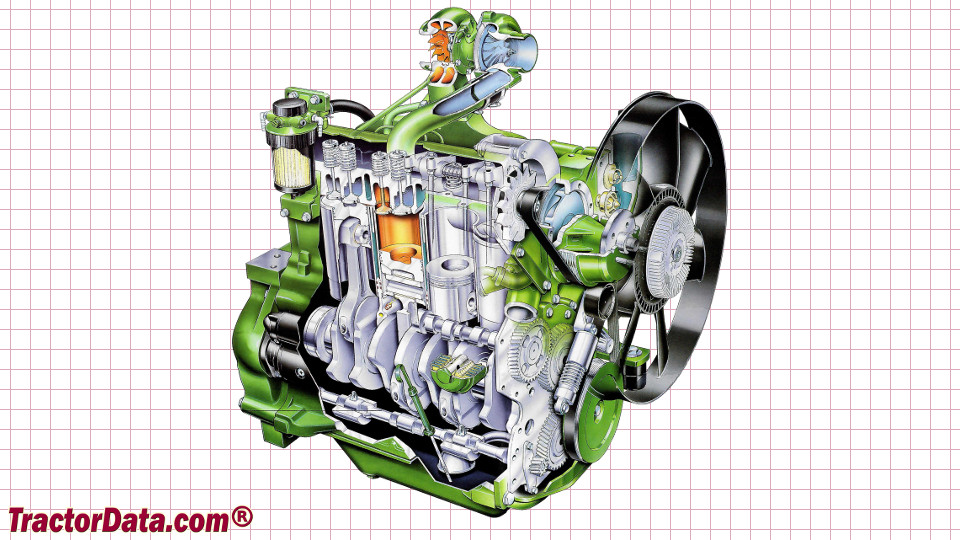

John Deere 6300 engine image
