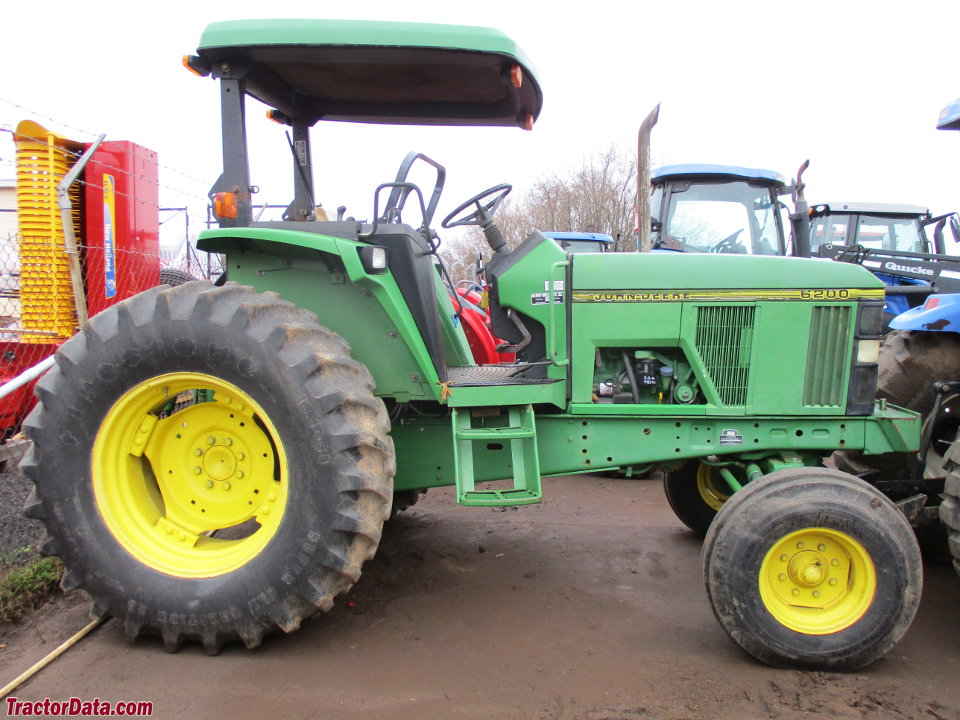

John Deere 6200
| | 1993 - 1998 |
| 6000 Series | | Utility tractor |
|
Series map:
6200
6300
89.0hp
83.3hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| Original price was $31,000 in 1998 |
| Variants |
| 6200 | utility tractor
|
| 6200L | low-profile
|
| John Deere 6200 Power |
| Engine (gross) | 89 hp
66.4 kW
|
| Drawbar (claimed) | 53 hp
39.5 kW
|
| PTO (claimed) | 66 hp
49.2 kW
|
| Drawbar (tested) | 53.40 hp
39.8 kW
|
| PTO (tested) | 70.5 hp
52.6 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Differential hydraulic wet disc brakes |
| Two-post folding ROPS. ComfortGard Cab optional. |
| Capacity |
| ROPS Fuel | 29 gal
109.8 L
|
| Cab Fuel | 42 gal
159.0 L
|
| Hydraulic system | 12.4 gal
46.9 L
|
| Hydraulics |
| Type | closed-center pressure flow compensated (PFC)
|
| Capacity | 12.4 gal
46.9 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 1 to 4
|
| Total flow | 18 gpm
68.1 lpm
|
| | 25 gpmOptOptional
94.6 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | lower link draft sensing
|
| Rear lift (at ends) | 5020 lbs
2277 kg
|
| Rear lift (at 24"/610mm) | 4745 lbs
2152 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| | 540/1000 OptOptional
|
| 6200 Serial Number Location |
 |
| Serial number plate on the right side of the John Deere 6200 tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| New 66- to 85-HP 6000 Series Tractors published in 1992, by John Deere |
| 66- to 85-HP 6000 Series Tractors published in 1996, by John Deere |
| Operator's Manual 6200, 6200L, 6300, 6300L, 6400, 6400L and 6500L Tractors (OMAL77469) published in 1994 |
| 6000 Series Tractors and Advantage Series Tractors Product Information Handbook published in 1997, by John Deere |
| 66- to 85-HP 6000 Series Tractors published in 1996, by John Deere |
