John Deere 7400 Transmission


John Deere 7400 tractor photo
1993 - 1996
7000 Series
Row-Crop tractor
Series map:
7200
7400
102.2hp*
111.1hp*
*Estimated engine power for comparison only.
Transmission options
12-speed fully synchronized
16-speed four-speed power shift
Transmission
TransmissionSyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchhydraulic wet disc
Optional transmission. Three gears, plus reverse, in three ranges.
Speeds

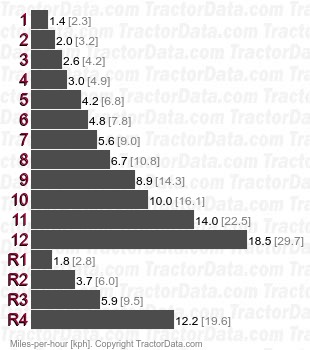

7400 SyncroPlus fully synchronized speeds
Transmission
TransmissionPowrQuad
Typefour-speed power shift
Gears16 forward and 12 reverse
Clutchhydraulic wet disc
Standard transmission. Four gears (1-4) in four ratios (A-D).
Speeds

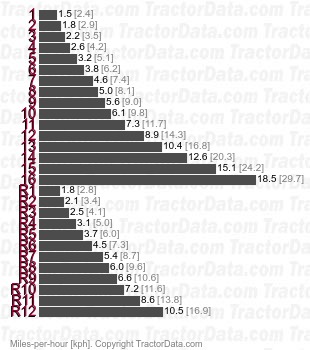

7400 PowrQuad four-speed power shift speeds
