John Deere 7800


John Deere 7800 tractor photo
1992 - 1996
7000 Series
Row-Crop tractor
Series map:
7700
7800
150.0hp
170.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $84,000 in 1996
John Deere 7800 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...
John Deere 7800 Transmissions
16-speed partial power shift
19-speed full power shift
Transmission details ...
John Deere 7800 Power
Engine (net)170 hp
126.8 kW
PTO (claimed)145 hp
108.1 kW
Drawbar (tested)131.99 hp
98.4 kW
PTO (tested)158.97 hp
118.5 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
Power steering
Differential hydraulic wet disc brakes
ComfortGard cab standard with air-conditioning.
Capacity
Fuel91 gal
344.4 L
Hydraulic system22.9 gal
86.7 L
Hydraulics
Typeclosed center
Capacity22.9 gal
86.7 L
Pressure2900 psi
200.0 bar
Valves2 to 3
SCV flow25.4 gpm
96.1 lpm
Tractor hitch
Rear TypeIIIN/II
Controlposition and draft control
Rear lift8925 lbs
4048 kg
 10050 lbs*Optional with four-wheel drive.
4558 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase114.4 inches
290 cm
4WD Wheelbase110.2 inches
279 cm
Weight13910 to 15560 pounds
Full dimensions and tires ...
7800 Serial Number Location

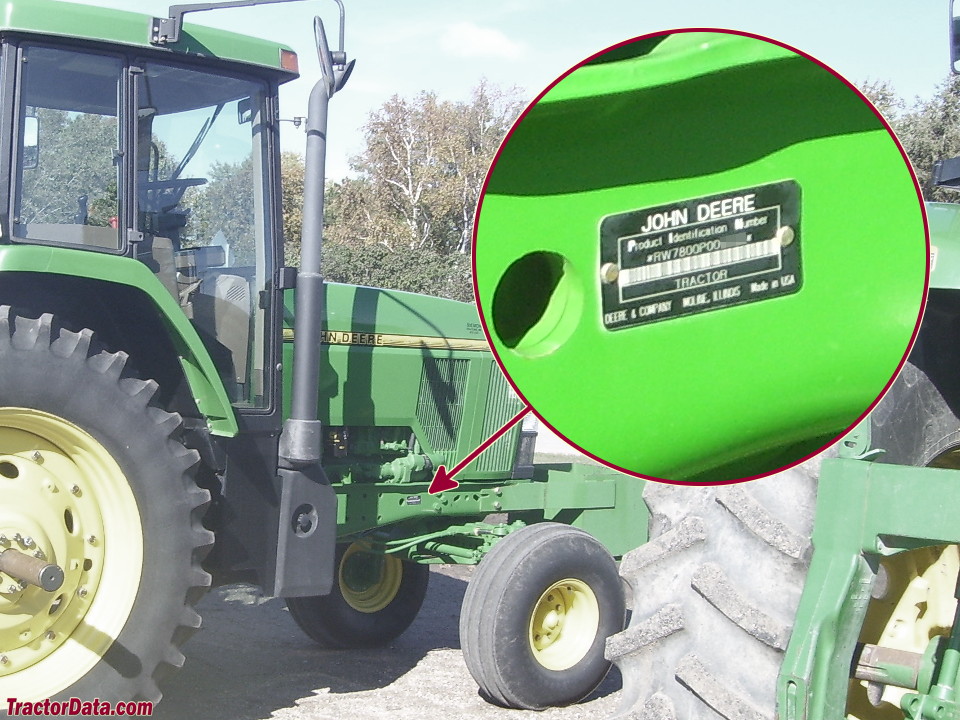

John Deere 7800 serial number location
Serial number tag on the right side of the 7800 tractor frame, above the front axle.
7800 Serial Numbers
19932329
19945701
199510495
199615001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps140
Battery volts12
References
7800 references literature
New 110- to 145-HP 7000 Series Tractors published in 1992, by John Deere
New John Deere 7000 Series Tractors published in 1993
Row-Crop Tractors Product Information Handbook published in 1992, by John Deere
