John Deere 7800 Transmission


John Deere 7800 tractor photo
1992 - 1996
7000 Series
Row-Crop tractor
Series map:
7700
7800
150.0hp
170.0hp
Transmission options
16-speed partial power shift
19-speed full power shift
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and 12 reverse
Clutchwet disc
The PowrQuad was the standard transmission on the Deere 7800. It consists of four speeds (1-4) in four ranges (A-D).
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears19 forward and 7 reverse
Clutchwet disc
Speeds

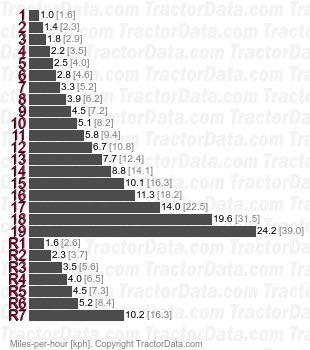

7800 PowerShift full power shift speeds
