John Deere 7800 Tests


John Deere 7800 tractor photo
1992 - 1996
7000 Series
Row-Crop tractor
Series map:
7700
7800
150.0hp
170.0hp
Tractor Tests
OECD 1668: diesel PowrQuad 4WD
OECD 1669: diesel power shift 4WD
OCED Tractor Test 1668

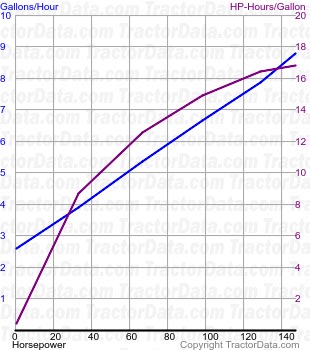

7800 fuel use from test 135
OCED Tractor Test 1668
Diesel PowrQuad 4WD
May 19 - June 4, 1993
Link: OCED Tractor Test 1668 file
PTO performance
Max power158.83 hp
118.4 kW
Fuel use9.0 gal/hour
34.1 l/hour
Power at rated engine speed147.08 hp
109.7 kW
Fuel use8.8 gal/hour
33.3 l/hour
Drawbar performance
Max power131.99 hp
98.4 kW
Fuel use8.7 gal/hour
32.9 l/hour
Max pull19,052 lbs
8641 kg
OCED Tractor Test 1669

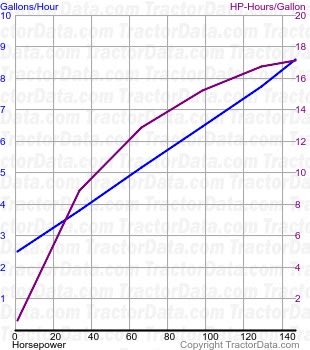

7800 fuel use from test 136
OCED Tractor Test 1669
Diesel power shift 4WD
May 6 - July 19, 1993
Link: OCED Tractor Test 1669 file
PTO performance
Max power158.97 hp
118.5 kW
Fuel use8.9 gal/hour
33.7 l/hour
Power at rated engine speed146.73 hp
109.4 kW
Fuel use8.6 gal/hour
32.6 l/hour
Drawbar performance
Max power124.12 hp
92.6 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 9 used for power test.
Max pull18,921 lbs
8582 kg
Gear 5 used for pull test.
