John Deere 7700 Tests


John Deere 7700 tractor photo
1993 - 1996
7000 Series
Row-Crop tractor
Series map:
7600
7700
7800
130.0hp
150.0hp
170.0hp
Tractor Tests
OECD 1666: diesel PowrQuad 4WD
OECD 1667: diesel Powershift 4WD
OCED Tractor Test 1666

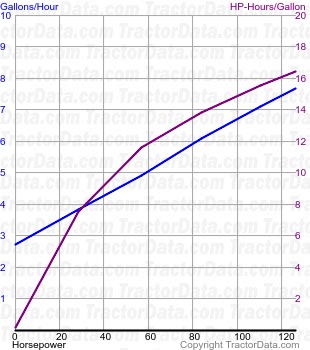

7700 fuel use from test 133
OCED Tractor Test 1666
Diesel PowrQuad 4WD
May 26 - June 21, 1993
Link: OCED Tractor Test 1666 file
PTO performance
Max power126.09 hp
94.0 kW
Fuel use7.5 gal/hour
28.4 l/hour
Power at rated engine speed126.08 hp
94.0 kW
Fuel use7.9 gal/hour
29.9 l/hour
Drawbar performance
Max power116.61 hp
87.0 kW
Fuel use8.0 gal/hour
30.3 l/hour
Max pull17,406 lbs
7895 kg
OCED Tractor Test 1667

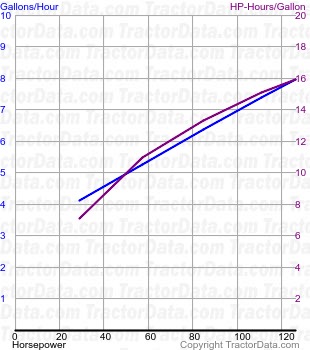

7700 fuel use from test 134
OCED Tractor Test 1667
Diesel Powershift 4WD
April 22 - May 21, 1993
Link: OCED Tractor Test 1667 file
PTO performance
Max power130.80 hp
97.5 kW
Fuel use7.5 gal/hour
28.4 l/hour
Power at rated engine speed126.08 hp
94.0 kW
Fuel use7.7 gal/hour
29.1 l/hour
Drawbar performance
Max power111.56 hp
83.2 kW
Fuel use7.8 gal/hour
29.5 l/hour
Gear 11 used for power test.
Max pull14,908 lbs
6762 kg
Gear 5 used for pull test.
