John Deere 7600


John Deere 7600 tractor photo
1992 - 1996
7000 Series
Row-Crop tractor
Series map:
7600
7700
130.0hp
150.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $60,500 in 1996
John Deere 7600 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 7600 Transmissions
16-speed partial power shift
19-speed full power shift
Transmission details ...
John Deere 7600 Power
Engine (net)130 hp
96.9 kW
PTO (claimed)112 hp
83.5 kW
Drawbar (tested)100.57 hp
75.0 kW
PTO (tested)113.04 hp
84.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
Power steering
Differential hydraulic wet disc brakes
ComfortGard cab standard with air-conditioning.
Capacity
Fuel65 gal
246.0 L
 91 galOptOptional
344.4 L
Hydraulic system22.5 gal
85.2 L
Hydraulics
Typeclosed center pressure and flow compensated
Capacity22.5 gal
85.2 L
Pressure2900 psi
200.0 bar
Valves2 to 3
SCV flow25.4 gpm
96.1 lpm
Tractor hitch
Rear TypeIIIN/II
Controlposition and draft control
Rear lift7225 lbs
3277 kg
 8925 lbs*Optional with two-wheel drive.
4048 kg
 10050 lbs*Optional with four-wheel drive.
4558 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase114.4 inches
290 cm
4WD Wheelbase110.2 inches
279 cm
Weight13160 to 14950 pounds
Front tire10.00-16
Rear tire18.4-38 (2WD)
Full dimensions and tires ...

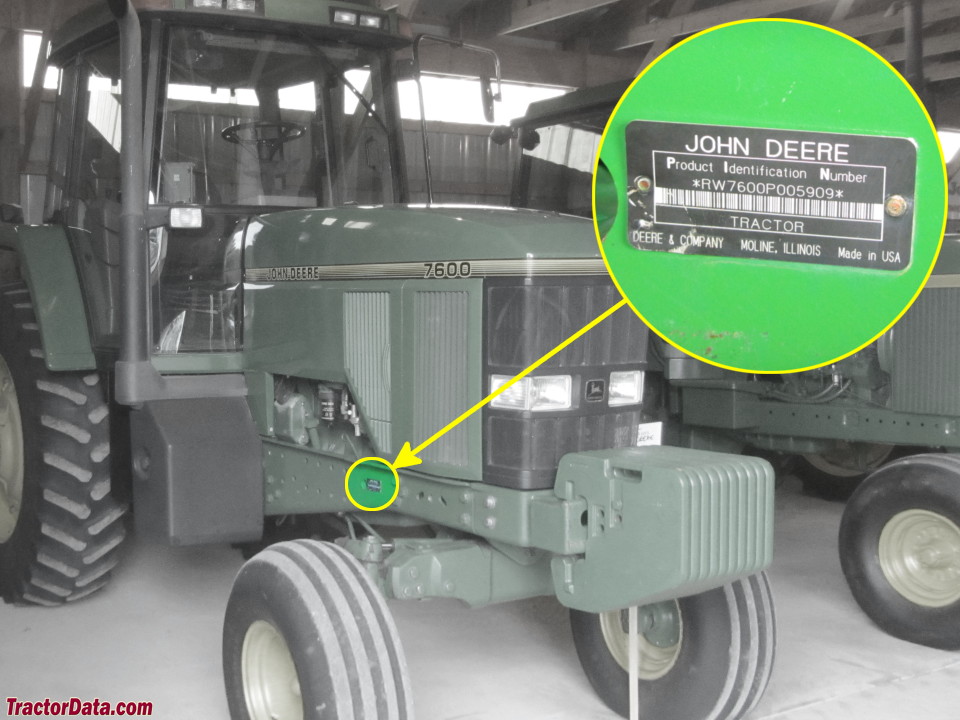

7600 Serial Number Location
John Deere 7600 serial number location
Serial number tag on right side of tractor frame, above the front axle.
7600 Serial Numbers
19931001
19944601
19956195
19968001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps140
Battery volts12
References
7600 references literature
New 110- to 145-HP 7000 Series Tractors published in 1992, by John Deere
New John Deere 7000 Series Tractors published in 1993
Row-Crop Tractors Product Information Handbook published in 1992, by John Deere
