John Deere 5400 Engine


John Deere 5400 tractor photo
1992 - 1997
5000 Utility Series
Utility tractor
Series map:
5300
5400
5500
55.9hp
68.4hp
83.2hp
Engine Detail
John Deere
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power (gross)68.4 hp
51.0 kW
Fuel systemdirect injection
Air cleanerdual dry elements
Pre-heatingthermostart
Compression17.8:1
Rated RPM2400
Operating RPM1600-2400
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity10 qts
9.5 L

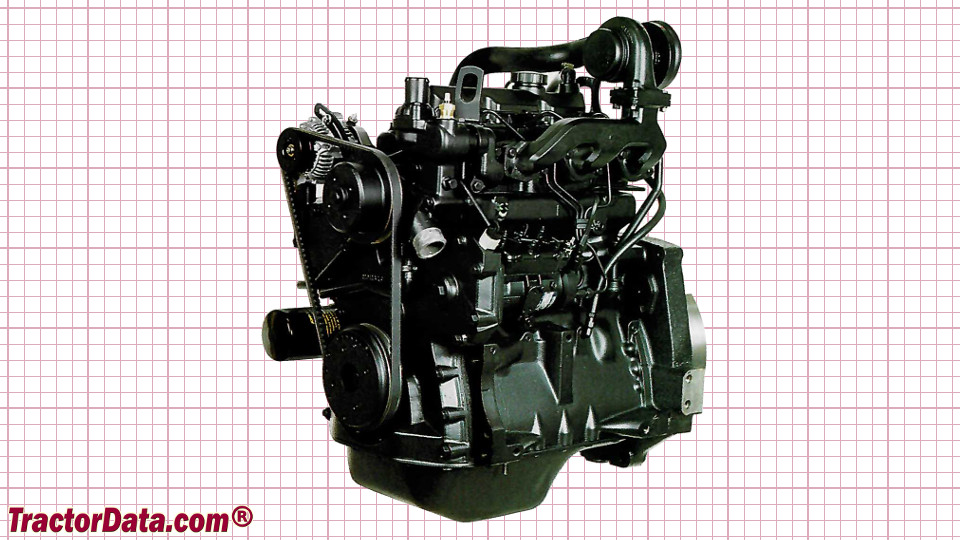

John Deere 5400 Engine
John Deere 5400 engine image
