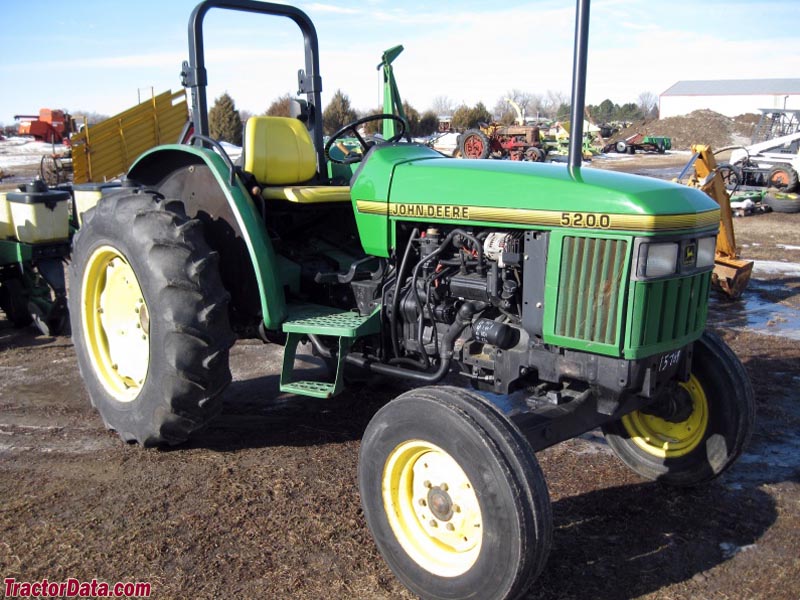

John Deere 5200
| | 1992 - 1997 |
| 5000 Utility Series | | Utility tractor |
|
Series map:
5200
5300
45.6hp
55.9hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price was $20,000 in 1997 |
| John Deere 5200 Power |
| Engine (gross) | 45.6 hp
34.0 kW
|
| PTO (claimed) | 40 hp
29.8 kW
|
| Drawbar (tested) | 35.74 hp
26.7 kW
|
| PTO (tested) | 41.90 hp
31.2 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Capacity |
| ROPS Fuel | 18 gal
68.1 L
|
| Cab Fuel | 22 gal
83.3 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 10 gal
37.9 L
|
| Pressure | 2750 psi
189.6 bar
|
| Valves | 1 to 3
|
| Pump flow | 11.4 gpm
43.1 lpm
|
| Total flow | 18.2 gpm
68.9 lpm
|
| Steering flow | 6.8 gpm
25.7 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position control with top-link draft sensing
|
| Rear lift (at 24"/610mm) | 3374 lbs
1530 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Engine RPM | 540@2400
|
| Links |
| Temperature sensor: potential cold-start advance sensor failure leading to a no-start condition |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| ROPS Charging amps | 40
|
| Cab Charging amps | 60
|
| Battery volts | 12
|
| References |
 |
| Lawn & Grounds Care Sales Manual published in 1997, by John Deere* |
| Golf & Turf Equipment Purchasing Guide published in 1993, by John Deere |
| Golf & Turf Equipment Purchasing Guide published in 1997, by John Deere |
| Golf and Turf Equipment Purchasing Guide published in 1998, by John Deere |
| The spirit of value - three brand new tractors from 40 to 60 HP published in 1991, by John Deere |
| 40- to 73-HP 5000 Series Tractors published in 1995, by John Deere |
| Utility Tractors published in 1995, by John Deere |
| *Publication contains known errors. |
