John Deere 1070 Transmission


John Deere 1070 tractor photo
1989 - 1998
70 Compact Series
Compact Utility tractor
Yanmar built
Series map:
970
1070
33.0hp
38.5hp
Transmission
Typepartially synchronized
Gears9 forward and 3 reverse
Clutch225mm dry disc
Oil capacity22 qts*Transmission capacity is 22 quarts, according to the manual. Owners report actual capacity as 36 quarts to reach the fill mark on the dipstick.
20.8 L
Three speeds, plus reverse, in three ranges. Speeds may be shifted on the move. Tractor must be stopped to shift ranges.

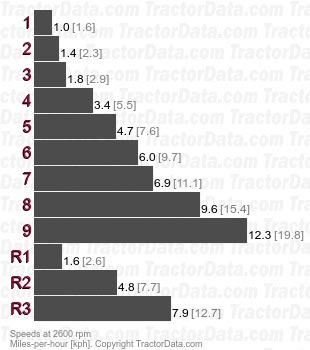

Speeds
With 13.6-28 rear tires.
1070  partially synchronized speeds

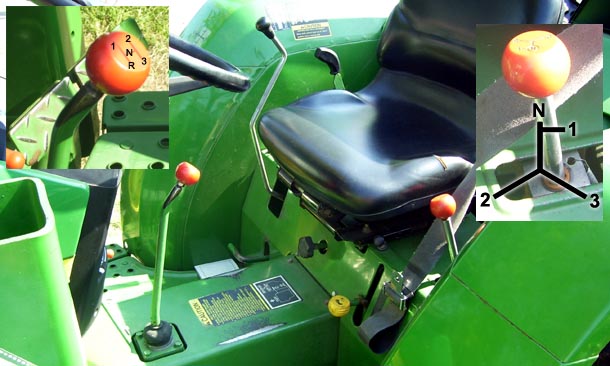

Shift Pattern
John Deere 1070 transmission controls
