| | 1989 - 1998 |
| 70 Compact Series | | Compact Utility tractor | | Yanmar built |
|
Series map:
870
970
1070
28.0hp
33.0hp
38.5hp
| Transmission options |
| 9-speed |
| 9-speed partially synchronized |
| Transmission |
| Gears | 9 forward and 3 reverse
|
| Clutch | 225mm dry disc
|
| Oil capacity | 22 qts
20.8 L
|
| Three speeds (1-3) plus reverse (R) with three ranges (1-3). The collar shift was the standard transmission. Tractor must be stopped, and clutch used, to shift gears or ranges. |

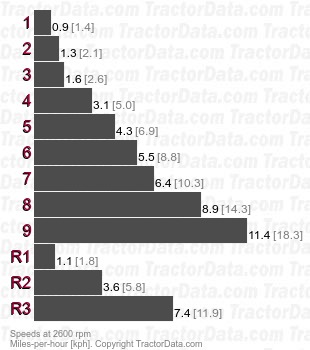

| Speeds |
| With 12.4-28 rear tires. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Clutch | 225mm dry disc
|
| Oil capacity | 22 qts
20.8 L
|
| Three speeds, plus reverse, in three ranges. Speeds may be shifted on the move. Tractor must be stopped to shift ranges. |
| Speeds |
| With 12.4-28 rear tires. |
|
