John Deere 8760 Tests


John Deere 8760 tractor photo
1989 - 1993
8060 Series
Four-wheel Drive (4WD) tractor
Series map:
8560
8760
8960
235.0hp
300.0hp
370.0hp
Tractor Tests
OECD 1624: diesel Powr-Sync 4WD
OECD 1631: diesel Power shift 4WD
OCED Tractor Test 1624

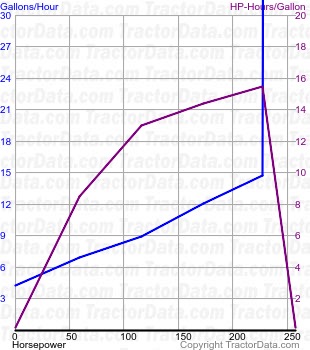

8760 fuel use from test 62
OCED Tractor Test 1624
Diesel Powr-Sync 4WD
May 1989 - 1989,
Link: OCED Tractor Test 1624 file
PTO performance
Power at rated engine speed256.94 hp
191.6 kW
Fuel use16.4 gal/hour
62.1 l/hour
Power at rated PTO speed277.41 hp
206.9 kW
Fuel use16.1 gal/hour
60.9 l/hour
Drawbar performance
Max power237.21 hp
176.9 kW
Fuel use15.8 gal/hour
59.8 l/hour
Max pull32880 lbs
14914 kg
OCED Tractor Test 1631

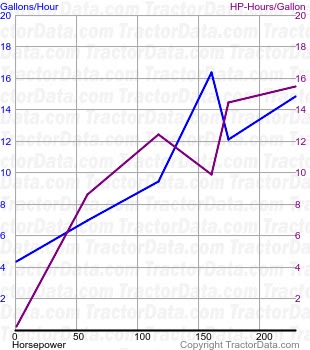

8760 fuel use from test 69
OCED Tractor Test 1631
Diesel Power shift 4WD
September 1989 - October 1989,
Link: OCED Tractor Test 1631 file
PTO performance
Max power276.95 hp
206.5 kW
Fuel use15.6 gal/hour
59.0 l/hour
Power at rated engine speed260.94 hp
194.6 kW
Fuel use15.9 gal/hour
60.2 l/hour
Power at rated PTO speed276.09 hp
205.9 kW
Fuel use16.2 gal/hour
61.3 l/hour
Drawbar performance
Max power239.49 hp
178.6 kW
Fuel use16.4 gal/hour
62.1 l/hour
Gear 7 used for power test.
Max pull32360 lbs
14678 kg
Gear 1 used for pull test.
