John Deere 8560 Tests


John Deere 8560 tractor photo
1989 - 1993
8060 Series
Four-wheel Drive (4WD) tractor
Series map:
8560
8760
235.0hp
300.0hp
OCED Tractor Test 1623

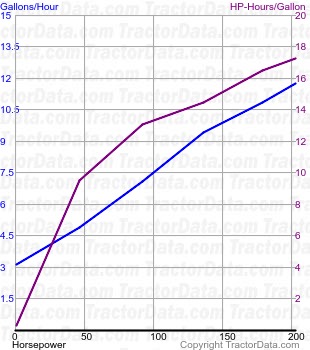

8560 fuel use from test 061
OCED Tractor Test 1623
Diesel PowrSync 4WD
May 1989 - 1989,
Link: OCED Tractor Test 1623 file
PTO performance
Max power210.25 hp
156.8 kW
Fuel use11.7 gal/hour
44.3 l/hour
Power at rated engine speed202.65 hp
151.1 kW
Fuel use11.8 gal/hour
44.7 l/hour
Power at rated PTO speed210.12 hp
156.7 kW
Fuel use11.7 gal/hour
44.3 l/hour
Drawbar performance
Max power180.74 hp
134.8 kW
Fuel use11.8 gal/hour
44.7 l/hour
Max pull32,166 lbs
14590 kg
