John Deere 4455 Transmission


John Deere 4455 tractor photo
1988 - 1992
4055 Series
Row-Crop tractor
Series map:
4255
4455
4555
142.2hp
156.9hp
173.0hp
Transmission options
16-speed partial power shift
15-speed full power shift
Transmission
TransmissionJohn Deere Quad Range
Typepartial power shift
Gears16 forward and 6 reverse
Clutchhydraulic wet disc
2WD Oil capacity64 qts
60.6 L
4WD Oil capacity68.8 qts
65.1 L
Four gears (1-4) in four ranges (A-D) with high-low power shift.
Speeds
With 18.4-38 rear tires.
4455 Quad Range partial power shift speeds
Shift Pattern
John Deere 4455 transmission controls
Transmission
TransmissionJohn Deere Power Shift
Typefull power shift
Gears15 forward and 4 reverse
Clutchhydraulic wet disc
2WD Oil capacity53.9 qts
51.0 L
4WD Oil capacity63.4 qts
60.0 L
Speeds

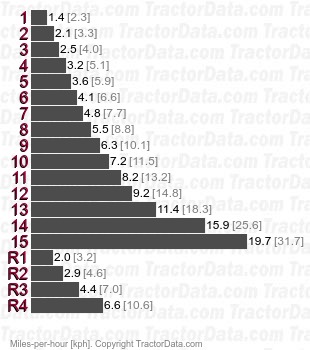

4455 Power Shift full power shift speeds
Shift Pattern
John Deere 4455 transmission controls
