John Deere 4555 Tests


John Deere 4555 tractor photo
1988 - 1992
4055 Series
Row-Crop tractor
Series map:
4455
4555
4755
156.9hp
173.0hp
187.7hp
Tractor Tests
OECD 1620: diesel Powershift 4WD
OECD 1629: diesel Quad-Range 2WD
OCED Tractor Test 1620

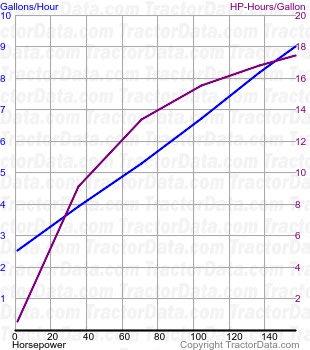

4555 fuel use from test 058
OCED Tractor Test 1620
Diesel Powershift 4WD
April 1 - May 1, 1989
Link: OCED Tractor Test 1620 file
PTO performance
Max power162.47 hp
121.2 kW
Fuel use8.7 gal/hour
32.9 l/hour
Power at rated engine speed156.89 hp
117.0 kW
Fuel use8.9 gal/hour
33.7 l/hour
Drawbar performance
Max power131.40 hp
98.0 kW
Fuel use8.9 gal/hour
33.7 l/hour
Gear 12 used for power test.
Max pull20,923 lbs
9490 kg
Gear 3 used for pull test.
OCED Tractor Test 1629
4555 fuel use from test 067
OCED Tractor Test 1629
Diesel Quad-Range 2WD
September 1 - October 1, 1989
Link: OCED Tractor Test 1629 file
PTO performance
Max power162.53 hp
121.2 kW
Fuel use8.9 gal/hour
33.7 l/hour
Power at rated engine speed156.83 hp
116.9 kW
Fuel use9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power139.99 hp
104.4 kW
Fuel use9.0 gal/hour
34.1 l/hour
Max pull17,784 lbs
8066 kg
