| | 1988 - 1992 |
| 4055 Series | | Row-Crop tractor |
|
Series map:
4055
4255
126.1hp
142.2hp
| Transmission options |
| 16-speed partial power shift |
| 15-speed full power shift |
| Transmission |
| Transmission | John Deere Quad Range
|
| Type | partial power shift
|
| Gears | 16 forward and 6 reverse
|
| Clutch | hydraulic wet disc
|
| 2WD Oil capacity | 64 qts
60.6 L
|
| 4WD Oil capacity | 68.8 qts
65.1 L
|
| Four gears (1-4) in four ranges (A-D) with high-low power shift. |

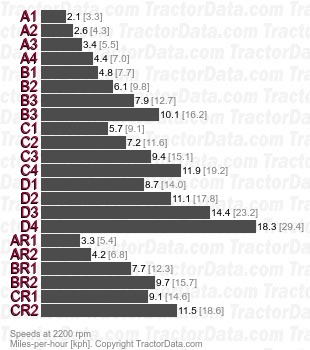

| Speeds |
| With 18.4-38 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | John Deere Power Shift
|
| Type | full power shift
|
| Gears | 15 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| 2WD Oil capacity | 53.9 qts
51.0 L
|
| 4WD Oil capacity | 63.4 qts
60.0 L
|

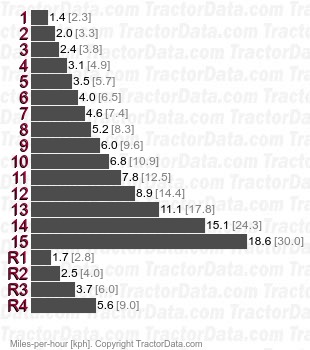

| Speeds |
|
| Shift Pattern |
 |
