John Deere 2755 Transmission


John Deere 2755 tractor photo
1987 - 1992
55 Utility Series
Utility tractor
Series map:
2555
2755
2955
77.0hp
88.0hp
97.0hp
Transmission options
8-speed partially synchronized
16-speed partial power shift
12-speed
Transmission
TransmissionJohn Deere Top-Shaft Synchronized (TSS)
Typepartially synchronized
Gears8 forward and 4 reverse
Clutchdry disc
Four gears with two ranges (I-II) and reverse range.
Speeds
With 16.9-24 rear tires.

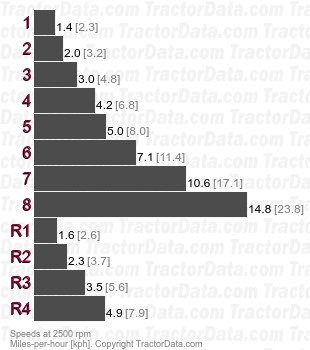

2755 Top-Shaft Synchronized (TSS) partially synchronized speeds
Transmission
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized (TSS)
Typepartial power shift
Gears16 forward and 8 reverse
Adds a hydraulic high-low power shift to the basic TSS transmission.
Speeds
With 16.9-24 rear tires.

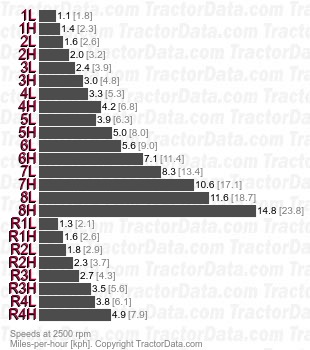

2755 Hi-Lo Top-Shaft Synchronized (TSS) partial power shift speeds
Transmission
TransmissionJohn Deere Top-Shaft Synchronized Creeper
Gears12 forward and 8 reverse
